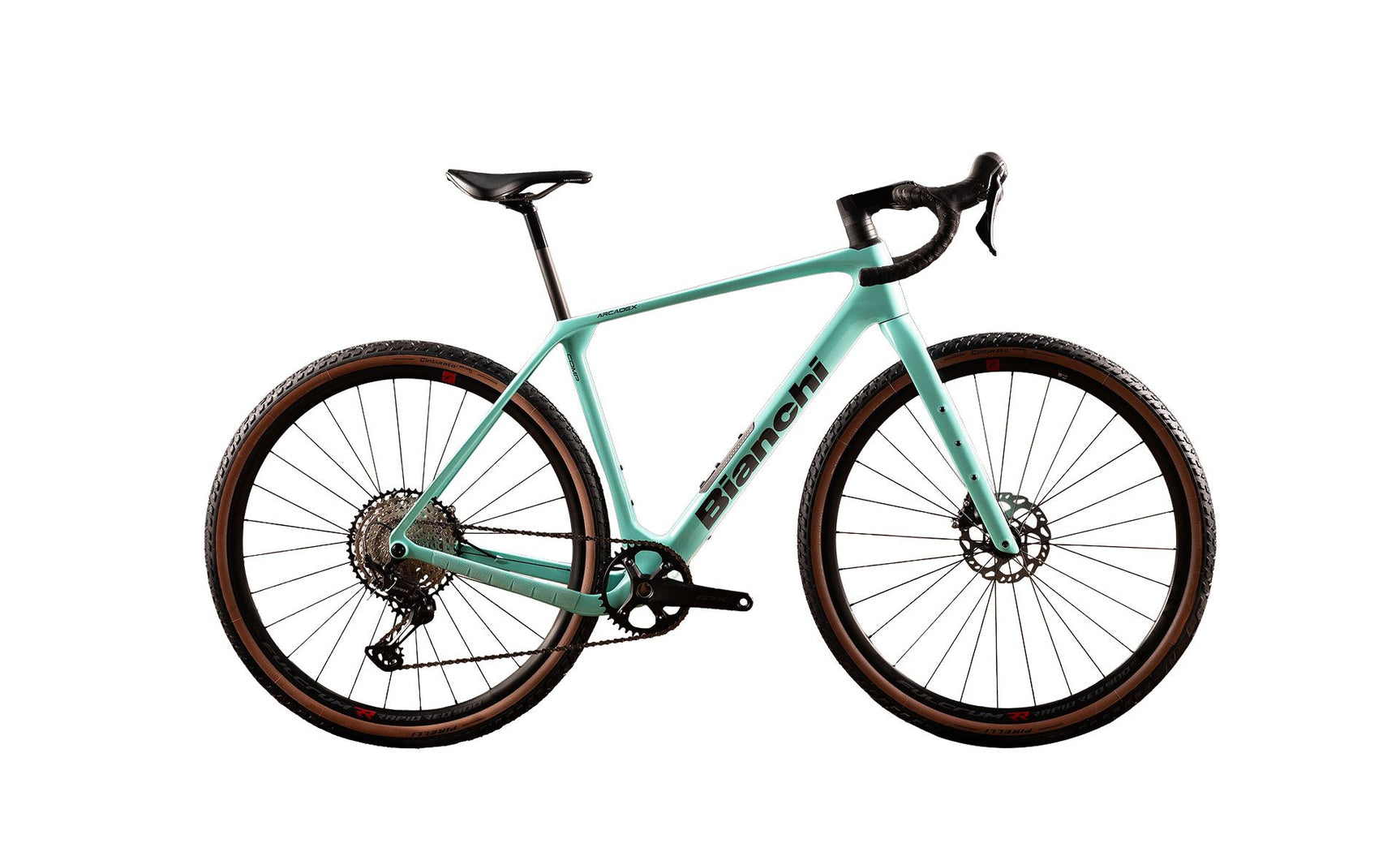

Bianchi Arcadex Comp Apex Disc 1x12sp

The Bianchi Arcadex Comp is a gravel bike designed for those who wish to explore new routes with a versatile, reliable, and high-performance machine. Ideal for sport gravel riding, light bikepacking, long rides on unpaved roads, and mixed asphalt-dirt use, it combines the racing DNA of Bianchi with a modern geometry and a robust build, engineered to deliver control, comfort, and great adaptability.

The Arcadex Comp frame is designed to ensure stability on rough terrain, precise handling, and broad compatibility with generous tires. The wheel clearance up to ETRTO 622-50 allows for fitting ample tires to increase grip, comfort, and safety on gravel, while the integrated cable routing contributes to a clean and modern aesthetic. The carbon fiber fork helps to keep weight down and improves vibration absorption, making the bike more comfortable even on longer rides.

The SRAM Apex 1x drivetrain is a solution particularly well-suited for gravel thanks to its simplicity, reliability, and wide gear range. The 40-tooth chainring paired with the 11-50T cassette allows for effectively tackling both fast sections and the most challenging climbs, offering a very wide range and intuitive shifting management even on the most varied routes.

The SRAM Apex braking system with 160 mm front and rear rotors ensures powerful and controllable braking in all conditions, both on asphalt and on dirt. The Fulcrum RapidRed 900 2-Way Fit Ready wheels add further versatility, thanks to compatibility with both clincher and tubeless tires, and pair perfectly with the 45 mm Pirelli Cinturato Gravel M tires, ideal for achieving traction, comfort, and safety on mixed terrain.

The cockpit is also designed for modern gravel use: the Velomann aluminum stem and the gravel handlebar with 16° flare improve control and stability in the drops, especially on more technical sections. The Velomann carbon seatpost further contributes to increasing comfort over long distances, while the Velomann MITORA saddle completes a balanced and functional setup.

The Bianchi Arcadex Comp is therefore the ideal choice for those seeking a modern, concrete gravel bike, ready to accompany every ride with great reliability. It is perfect for the cyclist who wants a machine capable of effortlessly tackling unpaved roads, damaged asphalt, flowing trails, and long-range adventures.

Technical Specifications:

Frame
Bianchi Arcadex Comp Frame Kit
Flat Mount disc brake mount 140/160
PressFit 86.5 bottom bracket x Ø41
12 mm rear thru-axle
142 mm rear OLD
Front derailleur not supported
SRAM UDH-type rear derailleur

Bianchi Arcadex Fork
Flat Mount brake mount 140/160
12 mm front thru-axle
100 mm front OLD
Wheel clearance up to ETRTO 622-50 mm
Steerer tube diameter 1 1/8"
Material: SM carbon fiber

Bianchi Custom Acros ICR Headset
Integrated cable routing

Drivetrain
SRAM Apex D1 shifters
SRAM Apex Eagle rear derailleur
Maximum cassette sprocket 52T
SRAM Apex 1 Wide 40T crankset
Crank length: 170 mm XS (47) / SM (51), 172.5 mm MD (55) / LG (58), 175 mm XL (61)
SRAM DUB PressFit Road Wide 86.5 x Ø41 bottom bracket
SRAM SX Eagle chain
SRAM SX Eagle PG-1210 11-50T cassette
HG11 freehub body interface

Brakes
SRAM Apex brakes
Steel-Backed Organic brake pads
SRAM CenterLine rotors
Center Lock hub interface
160 mm diameter front and rear

Wheels
Fulcrum RapidRed 900 Wheels
2-Way Fit Ready, compatible with clincher and tubeless
700C diameter
Aluminum material
24 mm rim height
22 mm internal width

Pirelli Cinturato Gravel M Classic tires
Size 45-622
Tan sidewall

Cockpit
Velomann aluminum AICR handlebar stem
-2° angle
Steerer tube diameter 1-1/8" (28.6 mm)
Handlebar clamp diameter 31.8 mm
Lengths: 80 mm XS (47), 90 mm SM (51), 100 mm MD (55), 110 mm LG (58), 120 mm XL (61)

Velomann aluminum Gravel ICR handlebar
16° flare
130 mm drop
70 mm reach
Clamp diameter 31.8 mm
Widths: 400 mm XS (47) / SM (51), 420 mm MD (55) / LG (58), 440 mm XL (61)

Bianchi Hexagon Handlebar Tape
2.5 mm thickness
Black color

Seatpost/Saddle
Velomann Carbon UD seatpost
Ø27.2 mm diameter
Lengths: 300 mm XS (47), 350 mm SM (51) / MD (55) / LG (58) / XL (61)

Velomann MITORA 149 H2 saddle
Technical cover
Foam padding
Reinforced carbon fiber shell
Central cutout
Steel rails
250 mm length
149 mm width

Note
Bianchi reserves the right to make changes to components, based on availability, without prior notice.

Tip: to receive the bike ready to ride, you can add the “Bike assembled and adjusted by Cicli Drigani technicians” option to your cart for 59€. With this service, the bike will arrive assembled, adjusted, and ready to be ridden. Without this option, the bike will be delivered in the manufacturer's original packaging and will require some technical operations before it can be used safely.
