Pinarello  |  SKU: GR61

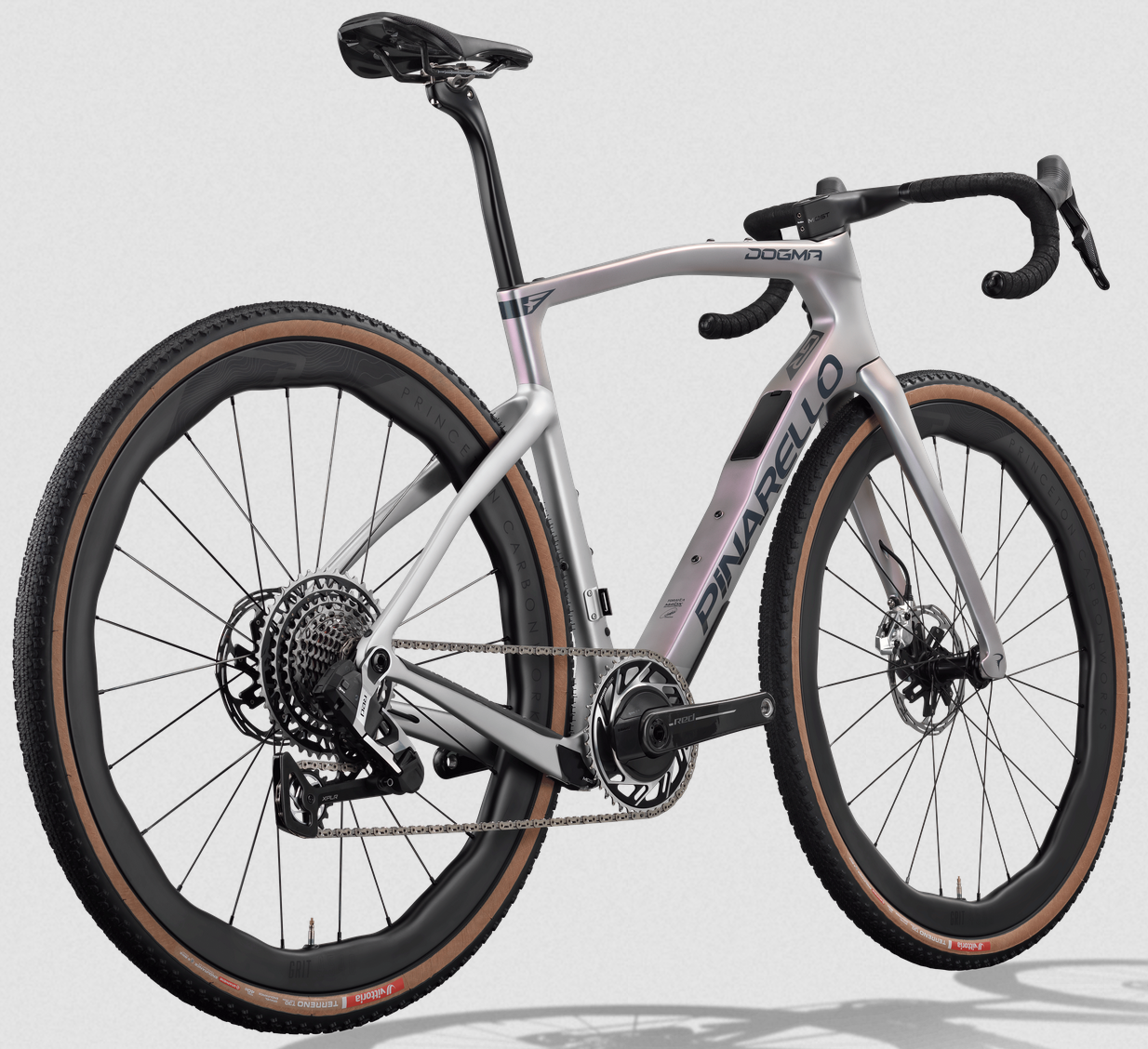

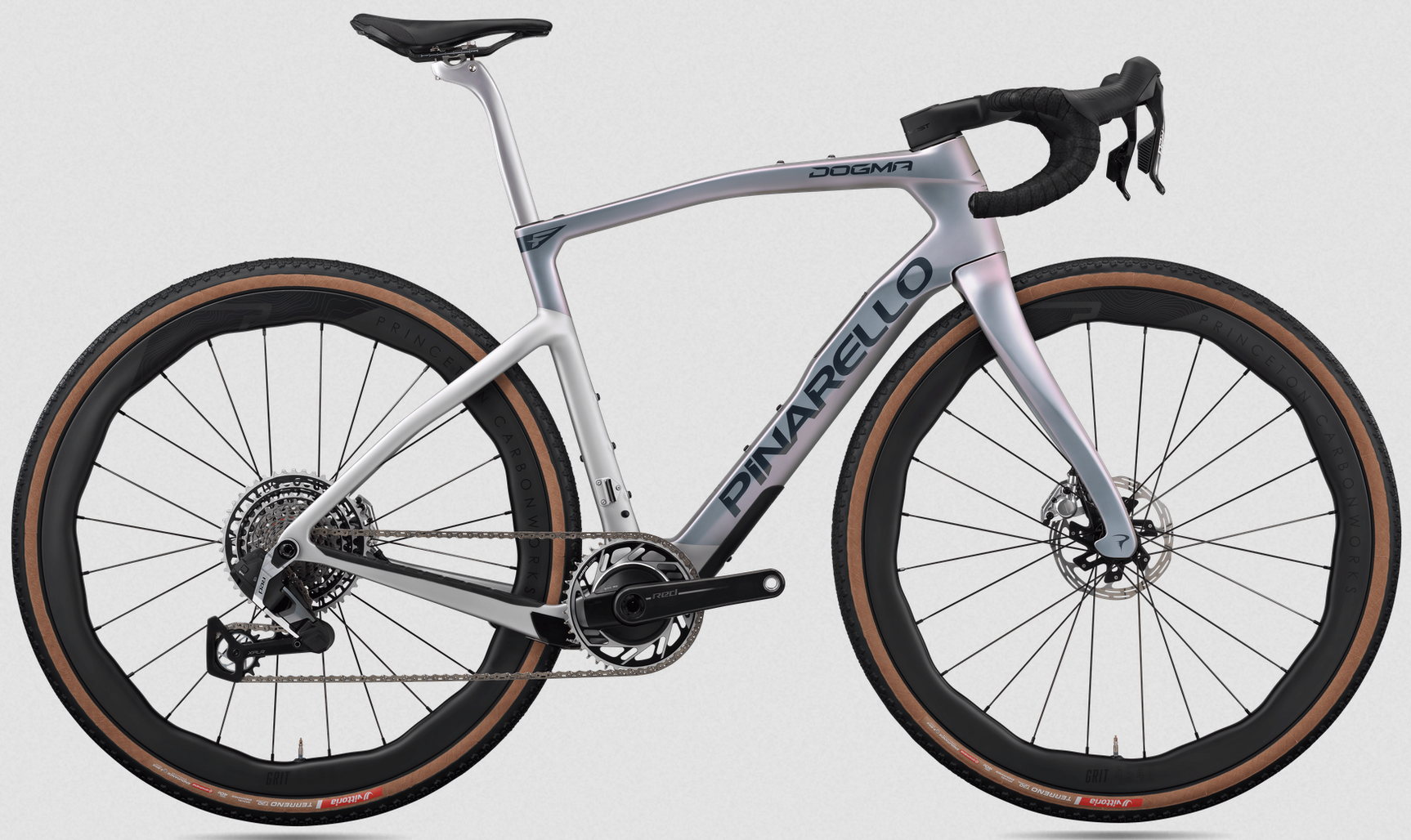

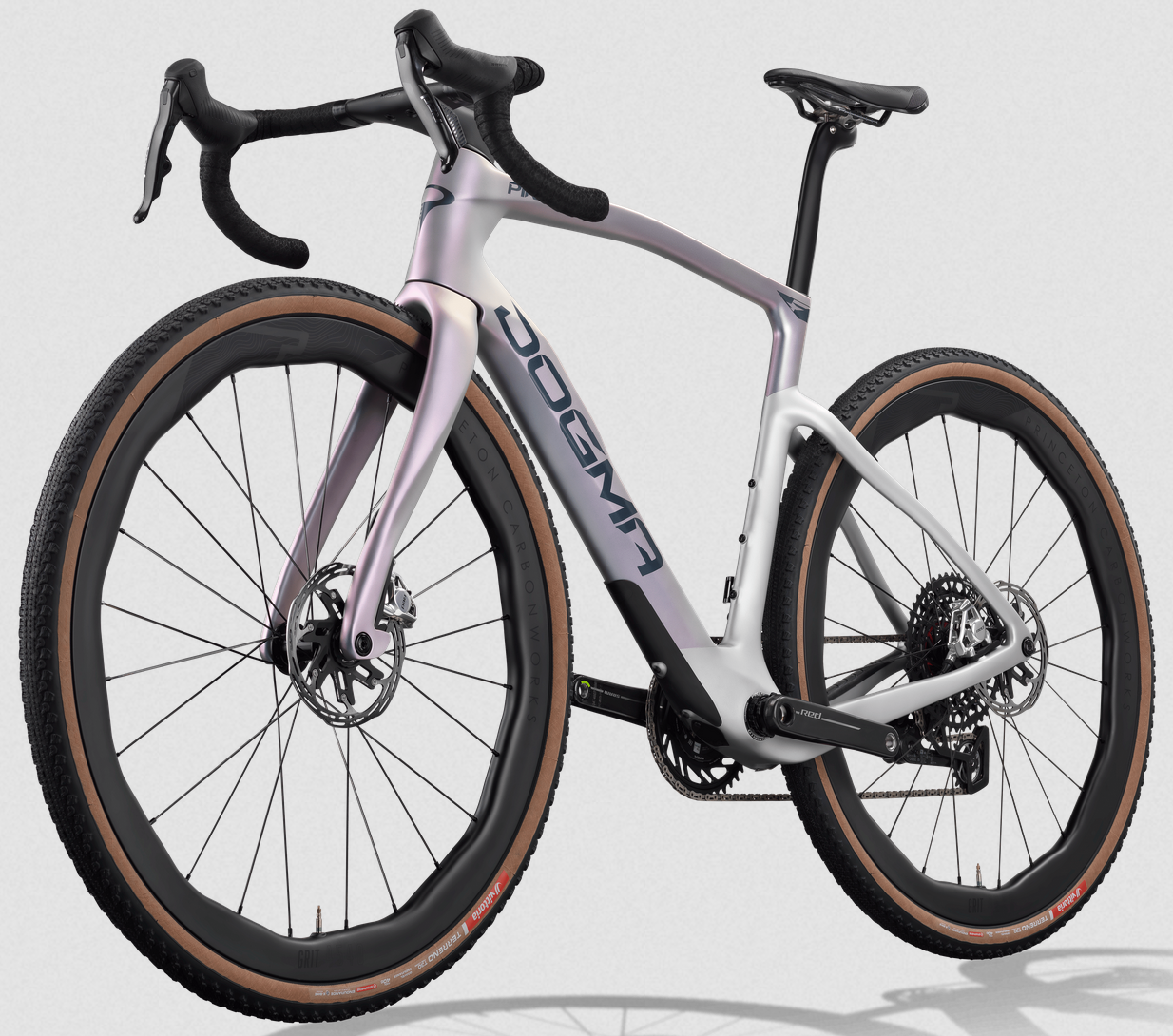

PINARELLO DOGMA GR SRAM RED XPLR AXS 1x13-Demo

€10.990,00 EUR €14.000,00
or 12 interest-free installments with HeyLight

Color: H140-INTERSTELLAR GREY
Size

If the product you selected is not available, order it by sending us an email.

Order

Click here to read the terms and conditions.

Description

DEMO BIKE USED FOR PHOTO SHOOTS

Like-new condition.

NO MORE EXCUSES

The new DOGMA GR strikes the perfect balance of speed, control, and traction. It combines the aerodynamics of the DOGMA F, the precision of the CROSSISTA, and the off-road capability of the DOGMA XC. The result? A gravel bike built to win fast races, where every detail is optimized for uncompromising performance.

RACING GEOMETRY

The frame geometry is specifically designed to help the rider get the most out of every pedal stroke. The seat tube and head tube angles encourage an aerodynamic riding position while boosting front-end confidence and stability — a must for high-speed gravel.

HEADTUBE BOW

Our head tube with an aerodynamic "nose" d shape, introduced for the first time on the DOGMA F8 in 2014, is constantly evolving. The latest version reduces the volume and width of this front surface, offering a more tapered design to improve frontal aerodynamic efficiency.

ADAPTIVE SEATPOST

A new seatpost was designed for this project. The tube section and overall shape were developed to increase comfort by finding the right balance between stiffness, aerodynamics, and vibration damping. By maintaining proper on-saddle positioning while pedaling on any terrain, it allows you to apply consistent power to the pedals.

NEW TALON ULTRAFAST GR

After extensive testing carried out on the Dogma GR, we decided to adopt the same geometry as the Talon Ultra Fast handlebar, with a 7° flare and a 7° inward bend.

The Talon Ultra Fast GR also stands out with two top rivets, providing mounting points for the new TT Gravel Bars.


GRAVEL TT BARS

Double central rivet on Talon Ultra Fast GR.
Reach and stack adjustment on extensions and armrests.
Integrated computer mount in the extension.
Fixed +10° tilt.

MAXIMUM TIRE SIZE

Customizing tires according to race course conditions is essential. For this reason, the frame guarantees maximum clearance for 45 mm tires at the front and 42 mm at the rear, as actually measured.

E-TICR HEADSET

Reducing the head tube width required a complete redesign. We developed an innovative elliptical shape that integrates a completely new headset with differentiated bearings: wider at the bottom and narrower at the top.

FRONT THRU AXLE

Hidden front thru axle.
This solution improves aerodynamics and enhances the fork's clean design.

DOGMA GR SRAM RED XPLR AXS 1x13 – Technical Specifications

FRAME

  • Frame: TorayCa M40X, internal TiCR™ cable routing, Italian bottom bracket

  • Fork: New Onda eTICR fork with ForkFlap™, 1.5” upper/lower steerer

DRIVETRAIN

  • Crankset: SRAM RED XPLR AXS 1x13

  • Front and rear derailleur: SRAM RED XPLR AXS 1x13

  • Cassette: SRAM RED XPLR AXS 1x13

  • Chain: SRAM Red

  • Bottom bracket: SRAM BB DUB ITALIAN 70mm ROAD WIDE

BRAKES

  • Brakes: SRAM Red 2-piston calipers with 160 mm rotors (front and rear)

COCKPIT

  • Integrated handlebar: TALON ULTRA FAST GR

  • Bar tape: MOST

SADDLE AND SEATPOST

  • Saddle: LYNX 2.0 XC

  • Seatpost: Pinarello Aero with 3D-printed titanium head and titanium hardware

WHEELS AND TIRES

  • Wheels: PRINCETON GRIT 4540 DB

  • Tires: VITTORIA TERRENO T30 40

  • Thru axles: MOST Ultra Light Custom 12x100 & 12x142, tool-free removal

ACCESSORIES

  • Bottle cage: TRAP PACF ø 74mm

  • Water bottle: Pinarello Fly 550ml Black

An uncompromising, extreme gravel bike designed for those who want to dominate every course with race-ready performance.
