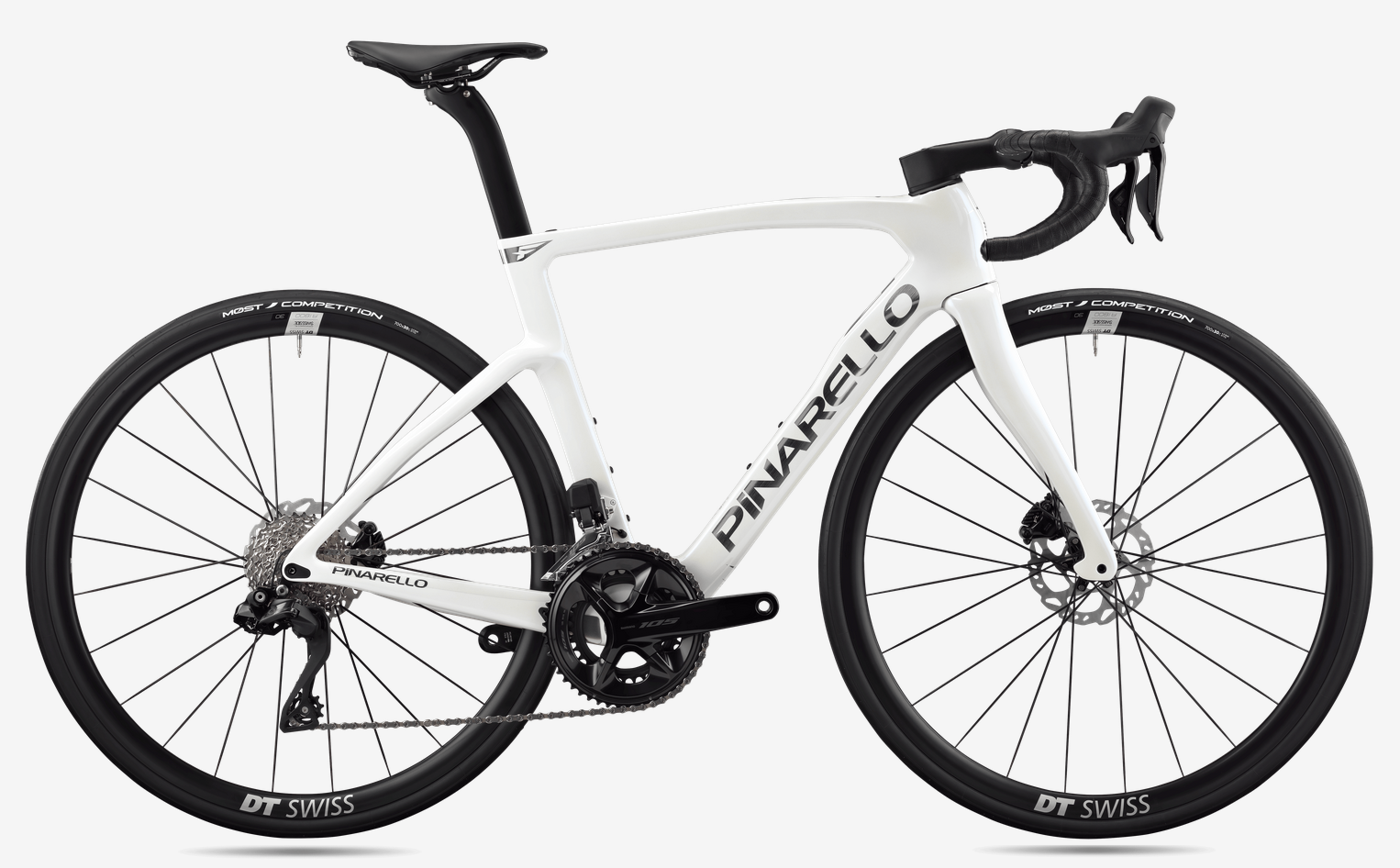

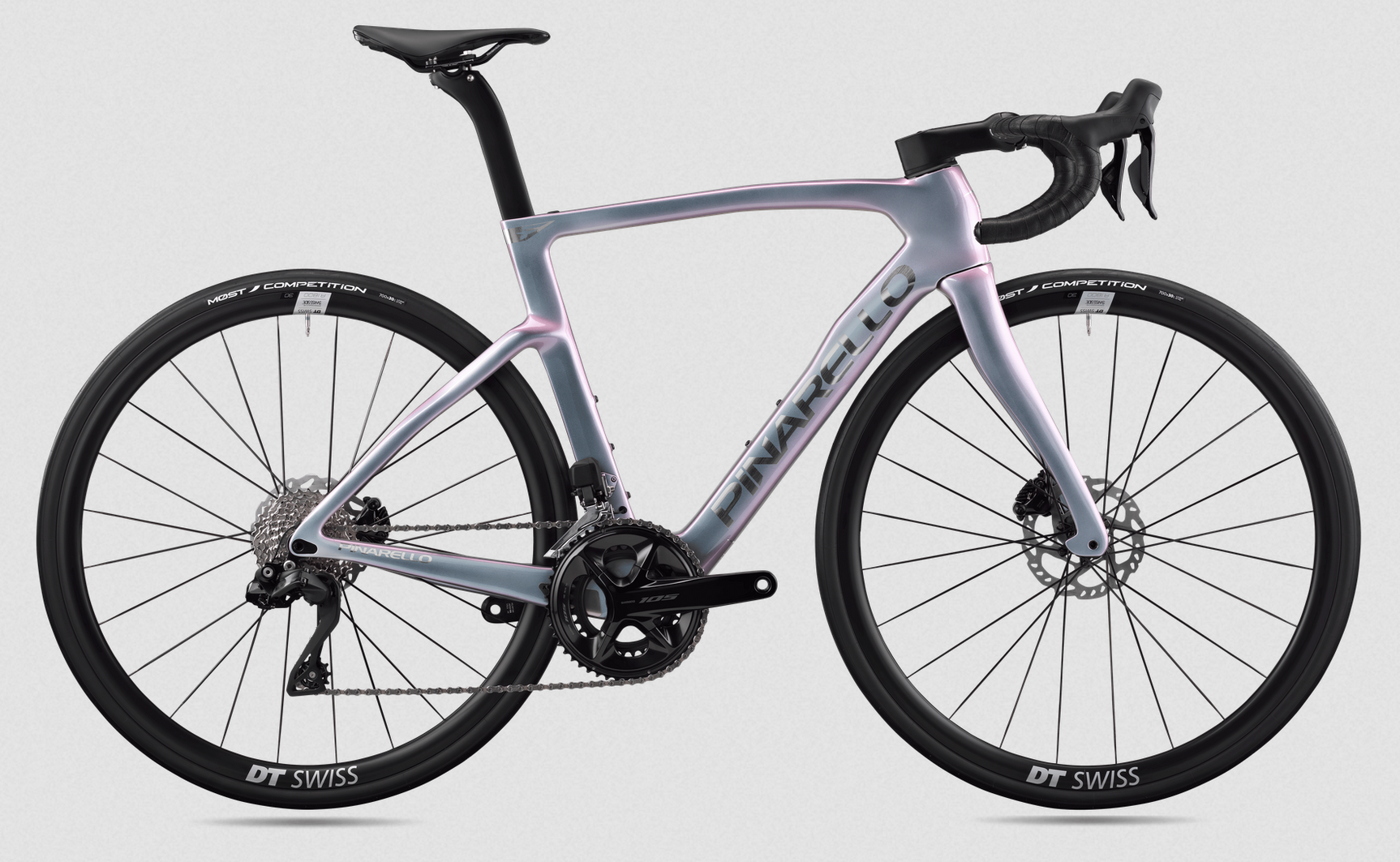

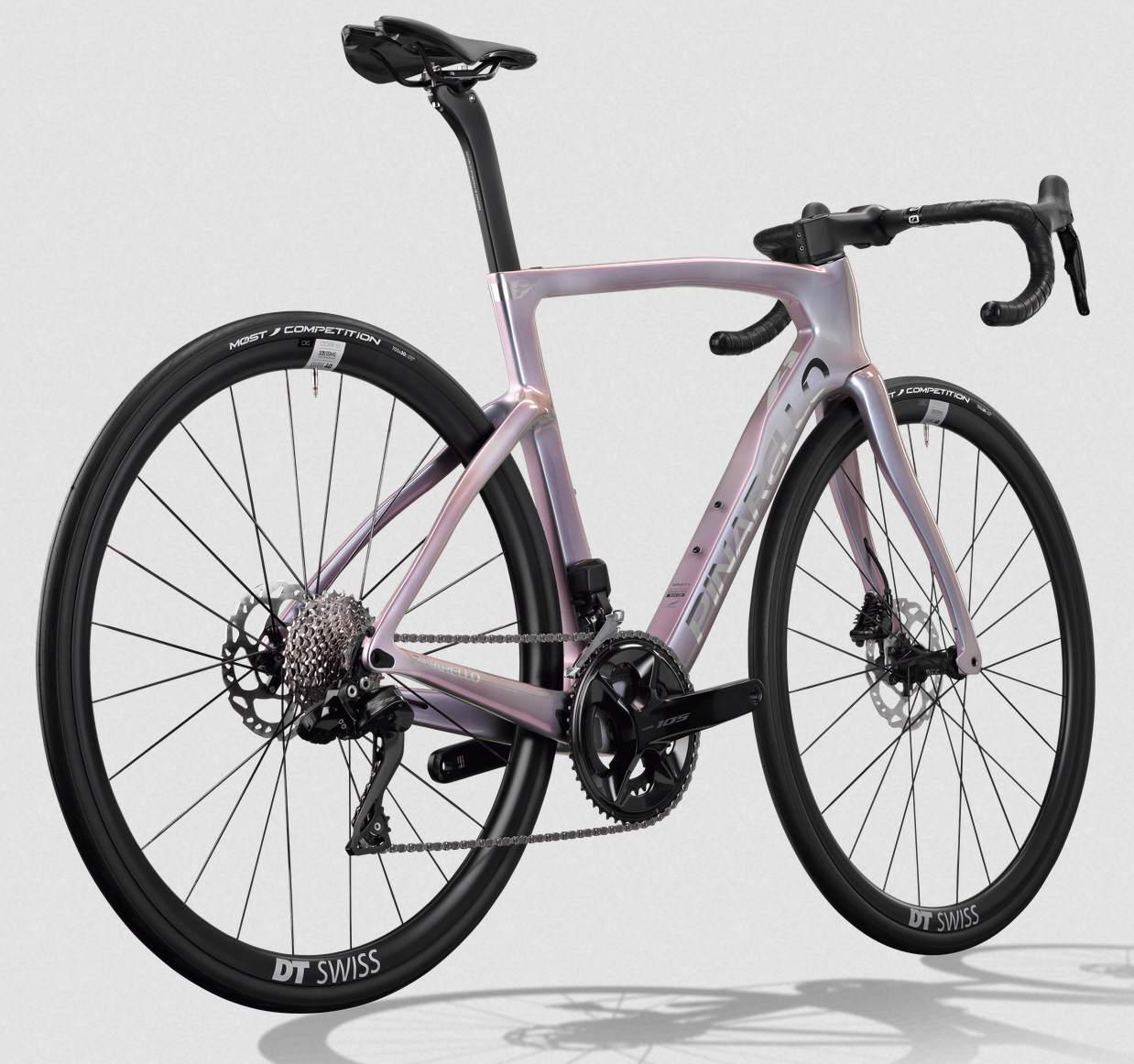

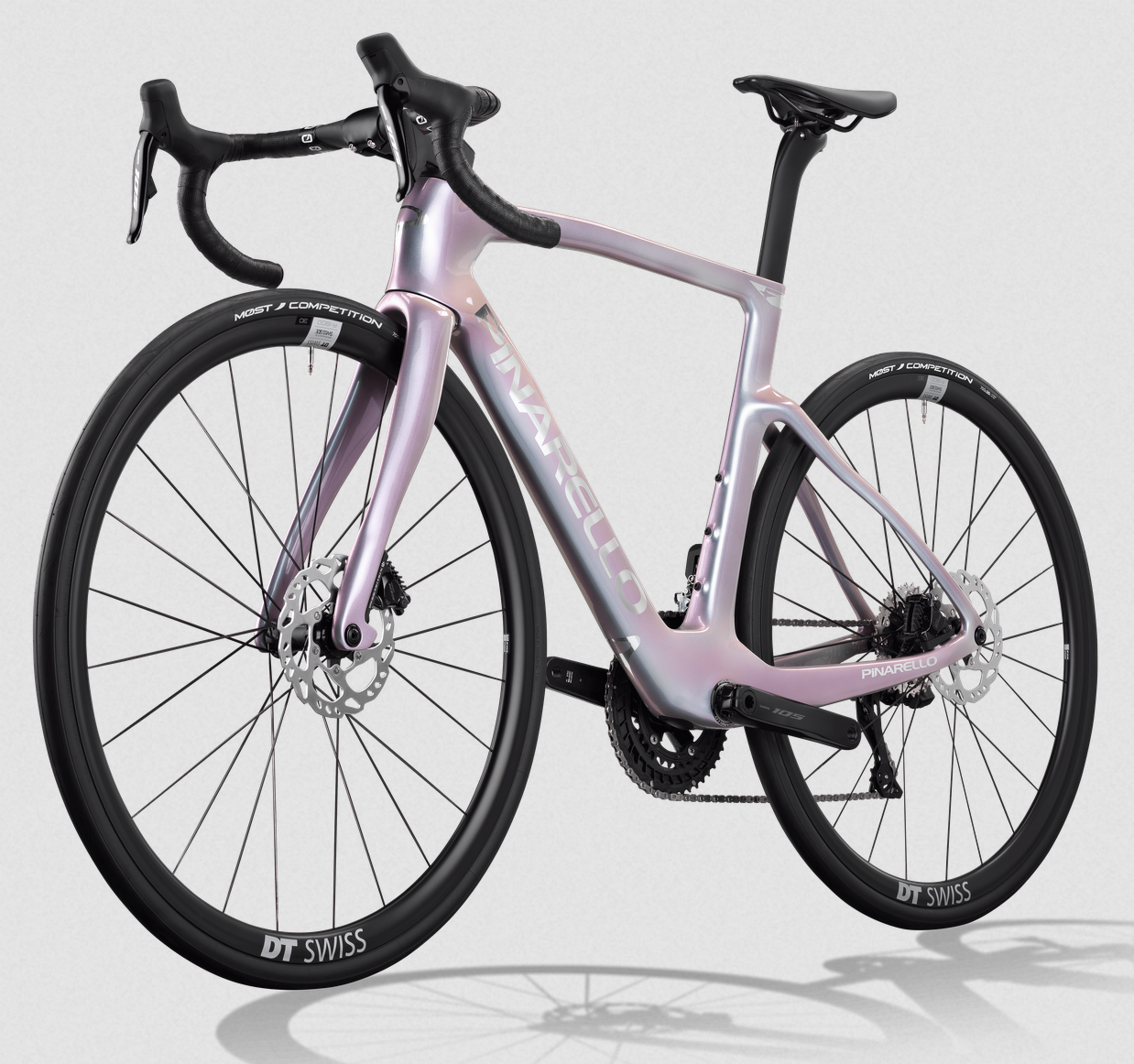

PINARELLO NEW F3 105 Di2

BORN TO RACE, NO DISCUSSION

Seventy years of history and expertise in building bicycles for the world's strongest cyclists have allowed us to create a new frame with exceptional performance.
The new Pinarello F brings our racing geometries and competitive DNA to an even wider audience, thanks to the availability of different types of carbon fiber and assembly configurations.

Every climb, flat, or descent finds its ideal expression in this bike born to excel everywhere: Pinarello F3 105 Di2.

Innovation

Tyre Clearance up to 32 mm

Compatibility with tires up to 32 mm to fully exploit the frame's potential, improving comfort, control, and speed on any surface.

Down Tube

New down tube with reduced thickness, optimized to improve aerodynamic efficiency and the overall responsiveness of the frame.

E-TICR Headset

Completely redesigned steering system: elliptical head tube with different diameter bearings (larger at the bottom, smaller at the top) for greater stiffness and aerodynamics.
The internal cable routing is now front-facing, for a cleaner design and simplified maintenance.

Onda Fork

The legendary ONDA fork, now slimmer and more aerodynamic, with 47 mm rake, optimized thanks to professional feedback to ensure stability, precision, and speed on descents.

Head Tube

New aerodynamic profile head tube, with increased surface area and smoother lines to increase stiffness and reduce air resistance.

Aero Keel Bottom Bracket

Aero KEEL bottom bracket with reduced volume compared to the Dogma F: greater torsional stiffness and a cleaner design for optimal power transfer.Integrated SeatclampFrontally integrated seatpost clamp

, for a more elegant look and superior protection from

sweat, dust, and external agentsALL COMPONENTSFrameFrame Set:.

Torayca T700 UD, internal cable routing TiCR™, Italian-threaded bottom bracket, UCI approved

Drivetrain

• Crankset and chainrings: Shimano 105 Di2 12-speed

Front derailleur:

• Shimano 105 Di2 12-speedRear derailleur:

• Shimano 105 Di2 12-speedCassette:

• Shimano 105 Di2 12-speedBottom bracket:

• Shimano 105 Di2 12-speedBrakes

• Front brake: Shimano 105 with 2 pistons, 160 mm rotor

Rear brake:

• Shimano 105 with 2 pistons, 160 mm rotorCockpit

• Handlebar: Jaguar Claw Ultra aluminum

Stem:

• Claw Ultra Aero aluminumHandlebar tape:

• MostSaddle:

• Most Lynx My26Seatpost:

• Integrated front FSC clamping systemWheels and tires

• Wheels: DT Swiss A1800 30DB

Tires:

• Most 30Thru axles:

• New Most Ultra Light Custom Axle 12x100 mm (front) and 12x142 mm (rear), tool-free removal Most 30

• Through pins: New Most Ultra Light Custom Axle 12x100 mm (front) and 12x142 mm (rear), tool-free removal
