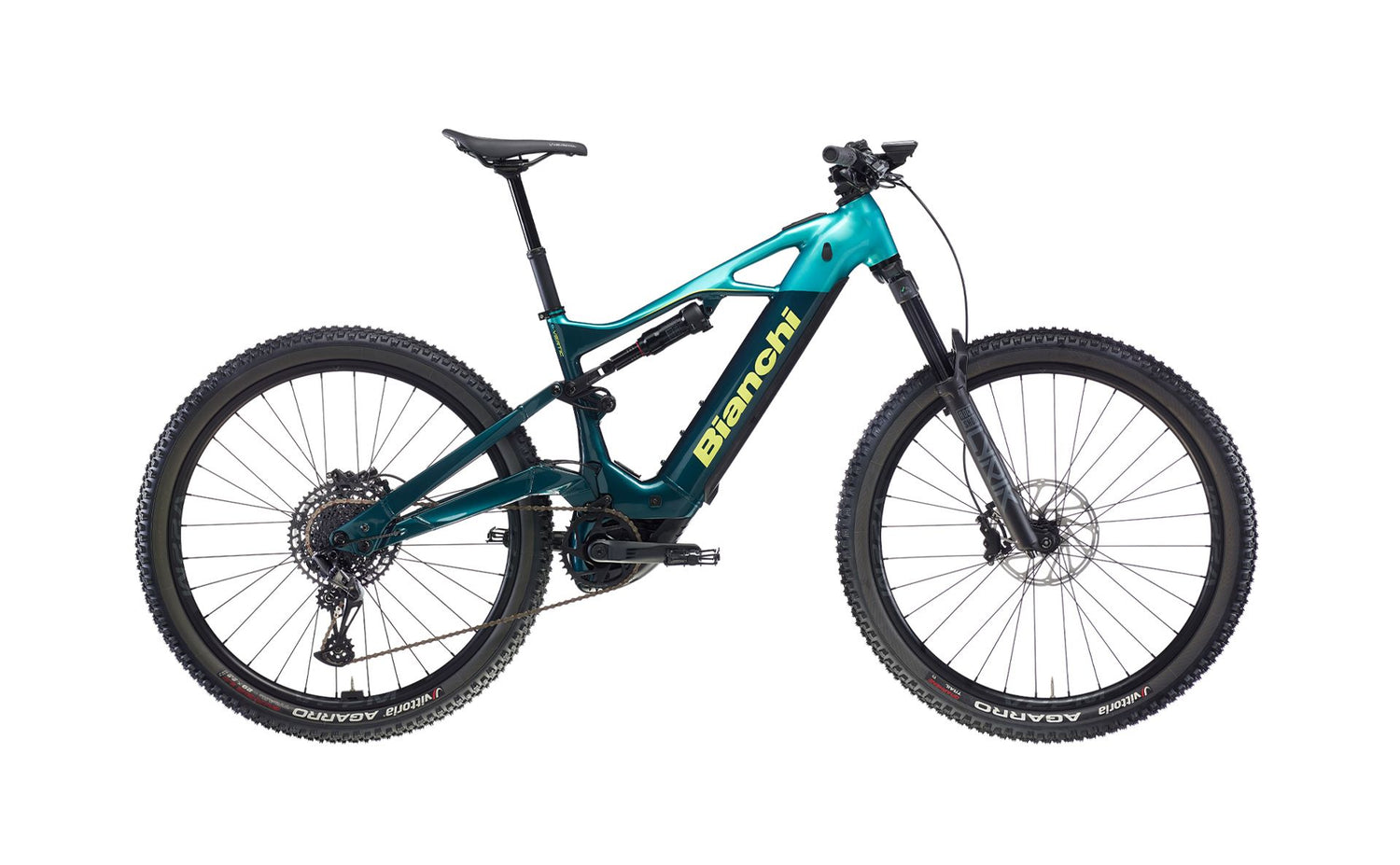

Bianchi E-VERTIC FX-TYPE 9.2 SX12 BOSCH CX

The Bianchi e‑Vertic FX‑Type is a full-suspension e-MTB designed for the most technical off-road riding, intended for those who want to tackle challenging trails, fast descents, rock gardens, drops, and jumps with a stable, powerful, and precise bike.

It is a modern e-trail / e-all mountain bike, capable of climbing strongly thanks to Bosch assistance and providing maximum safety when the terrain becomes steep and rough.

The aluminum frame of the e-Vertic FX is robust and engineered for aggressive riding, with geometries oriented towards high-speed stability and control on technical descents. The 150 mm front and 140 mm rear suspension allows it to absorb impacts, roots, and rocks while maintaining traction and trajectory precision.

The heart of the system is the Bosch Performance Line CX motor, here in a high-torque version, paired with the integrated Bosch Powertube 800 Wh battery: plenty of range for long rides and plenty of power for steep climbs, even on technical surfaces.

The 150 mm RockShox fork with 35 mm stanchions stiffens the front end and increases precision and safety on fast sections. The RockShox Deluxe Select DebonAir Progressive shock works on the rear triangle to maintain uphill grip and downhill control.

The SRAM SX Eagle 12-speed drivetrain offers a wide range, perfect for making the most of the motor's torque and handling significant gradients.

The SRAM DB4 4-piston brakes with 200 mm discs guarantee the essential power and modulation for an e-MTB of this category.

The wheels with tubeless-ready rims and Pirelli Scorpion E‑MTB 29x2.6 tires ensure high grip, stability, and absorption capability on the roughest terrain.

It is the ideal choice for those looking for a powerful and stable full-suspension e-MTB, suitable for technical trails, demanding descents, and long mountain rides.

Technical Specifications:

Motor System

Motor: Bosch Performance Line CX BDU3840 – max torque 100 Nm
Display: Bosch Intuvia 100
Battery: Bosch Powertube 800 Wh integrated

Frame and Suspension

Frame: Bianchi e-Vertic FX aluminum
Rear axle: 12x148 mm
Rear brake caliper: Post Mount 180
Travel: 150 mm front / 140 mm rear
Internal cable routing in the headset series
Compatible with 800 Wh battery
Sizes: 40 – 44 – 48 – 53

Fork: RockShox Psylo Silver RC 29"
Travel: 150 mm
Stanchions: 35 mm
Steerer tube: tapered 1.5"
Front axle: Boost 15x110 mm
Rake: 44 mm
Disc compatibility: 180–220 mm

Rear shock: RockShox Deluxe Select DebonAir Progressive
Dimensions:
• 210x52.5 mm (SM)
• 210x55 mm (MD/LG/XL)
Adjustments: damper R, rebound R55, compression C34, external rebound

Headset: FSA 1.5" with dual-side internal cable routing, HBS anti-rotation system

Drivetrain

Controls: SRAM SX Eagle single click, 12-speed
Derailleur: SRAM SX Eagle 12-speed
Crankset: FSA CK-745/IS forged aluminum
Crank length: 165 mm
Chain: SRAM SX Eagle 12-speed
Cassette: SRAM PG-1210 Eagle
Gear range: 11-13-15-17-19-22-25-28-32-36-42-50T

Brakes

Brakes: SRAM DB4, 4-piston, mineral oil
Levers: SRAM DB4
Discs: SRAM Centerline
• 200 mm front
• 200 mm rear

Wheels and Tires

Rims: Velomann V22M 622x28, 32 holes, tubeless ready
Hubs: Shimano TC500 thru-axle
Tires: Pirelli Scorpion E-MTB 29x2.6, 60 TPI

Cockpit

Stem: Velomann 50 mm, diameter 35 mm
Handlebar: Velomann aluminum, rise 18 mm, width 780 mm, diameter 35 mm
Grips: Herrmans Luna Lock 130 mm

Saddle and Seatpost

Seatpost clamp: Bianchi custom
Telescopic seatpost Velomann Ø31.6 mm, internal cable routing
Travel:
• 100 mm (SM)
• 125 mm (MD)
• 150 mm (LG/XL)

Saddle: Velomann GND Full-Fit Start Up
Rail: carbon steel
Dimensions: 262 x 145 mm

Bianchi reserves the right to modify specifications based on component availability, without prior notice.

Suggestion: to receive the bike ready to use, you can add the “Bike assembled and adjusted by Cicli Drigani technicians” option to your cart at a cost of €59. With this service, the bike will arrive assembled, adjusted, and ready to ride. Without this option, the bike will be delivered in the manufacturer's original packaging and will require some technical operations before it can be used safely.
