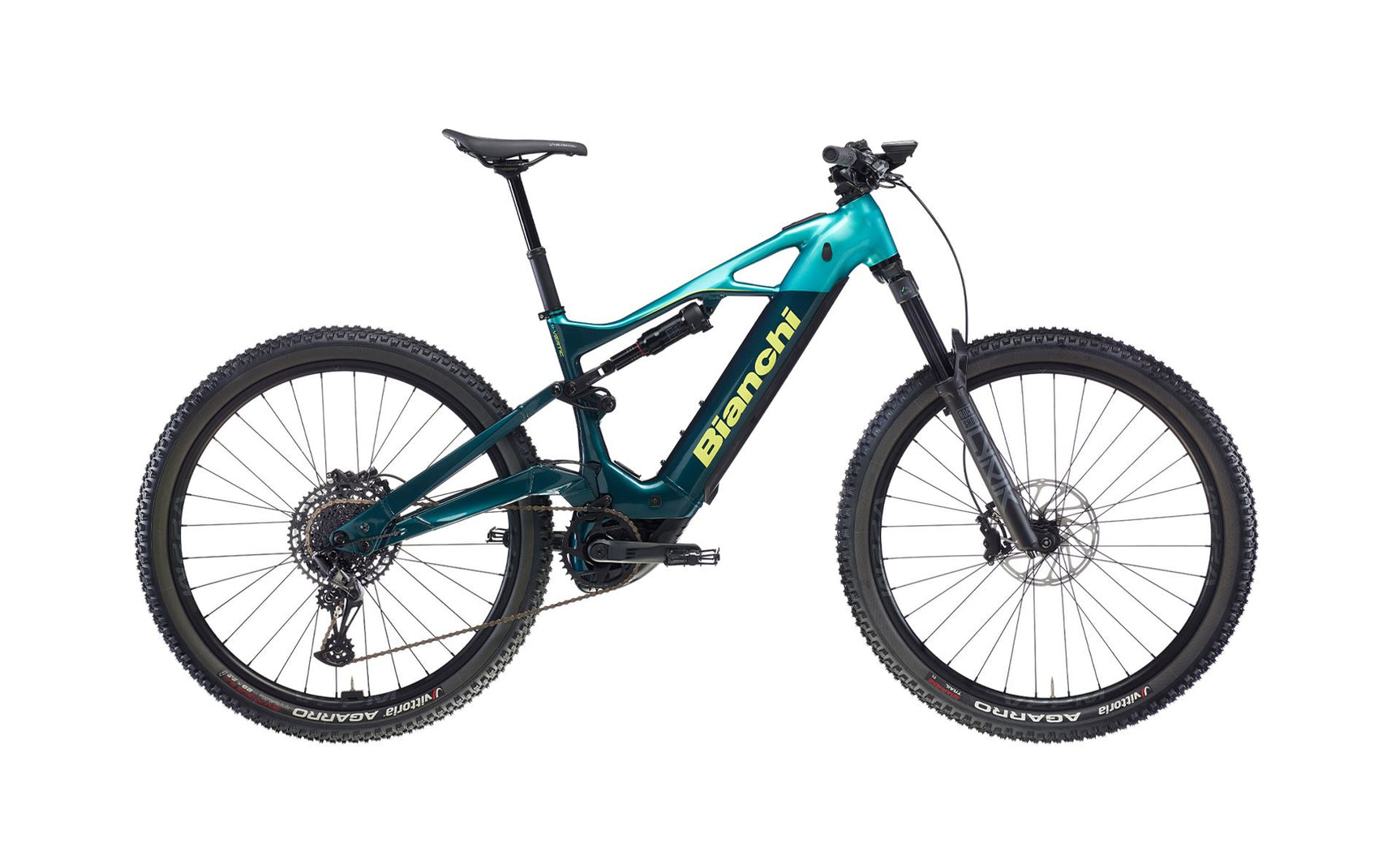

Bianchi E-Vertic FX 9.1 SX12 Bosch EV 800Wh

The Bianchi E-Vertic FX-Type 9.1 is a full-suspension e-MTB designed to tackle technical trails, demanding dirt roads, and fast descents with control and stability. It is a bike conceived for sporty off-road use, where effective suspension, uphill traction, and safety in the most difficult sections are required.

The aluminum frame is developed with modern geometries that prioritize stability on descents and steering precision, while still maintaining good handling on slow sections and technical climbs. The 150 mm front and 140 mm rear travel allows it to absorb roots, rocks, and compressions while keeping the wheel in contact with the ground.

The Bosch Performance Line CX motor provides powerful and progressive assistance, ideal for tackling steep climbs and long off-road sections. The integrated Bosch Powertube 800 Wh battery guarantees high range, suitable for long outings and routes with significant elevation gain.

The 150 mm RockShox Lyrik fork with 35 mm stanchions is designed for trail/enduro use, offering stiffness and sensitivity to impacts. At the rear, the RockShox Deluxe Select shock works to maintain traction and comfort, improving control and stability on rough sections.

The SRAM SX Eagle 12-speed drivetrain provides a wide range of gears, useful for managing both slow, technical climbs and faster sections. It is a simple and robust group, suitable for use in the e-MTB context.

The 4-piston SRAM DB4 brakes with 200 mm front and rear discs guarantee power and resistance to overheating, fundamental aspects for electric bikes and routes with long descents.

The 29" tubeless ready wheels with Pirelli Scorpion 29x2.6 specific E-MTB tires offer grip, stability, and control, improving safety and traction on loose surfaces.

It is an e-MTB recommended for those seeking a stable and robust full-suspension bike, suitable for technical trails, demanding descents, and off-road routes with significant elevation changes.

Technical specifications:

Motor unit
Motor: Bosch Performance Line CX BDU3840 with Kiox 300 display
Battery: Bosch Powertube 800 Wh

Frame
Frame: Bianchi e-Vertic FX in aluminum, 12x148 mm rear thru-axle, 180 mm post mount brake, internal cable routing in the headset series, compatible with 800 Wh battery
Travel: 150 mm front / 140 mm rear
Sizes: 40 – 44 – 48 – 53

Fork
RockShox Lyrik 29", 150 mm travel, 35 mm stanchions, Maxle Stealth 15x110 Boost thru-axle

Rear shock
RockShox Deluxe Select, Debonair Progressive, rebound adjustment

Drivetrain
Shifters: SRAM SX Eagle
Derailleur: SRAM SX Eagle 12-speed
Crankset: FSA CK-745/IS, 165 mm cranks
Chain: SRAM SX Eagle
Cassette: SRAM PG-1210 Eagle 11-50T

Brakes
SRAM DB4 4-piston
Discs: 200 mm front / 200 mm rear

Wheels and tires
Wheels: Velomann V22M tubeless ready
Hubs: Shimano TC500
Tires: Pirelli Scorpion 29x2.6 E-MTB

Cockpit
Stem: Velomann, 35 mm diameter, 50 mm length
Handlebar: Velomann aluminum, 18 mm rise, 780 mm width
Grips: Herrmans Luna lock

Saddle and seatpost
Seatpost: Velomann Ø31.6 mm, internal cable routing
Saddle: Velomann Gnd Full-fit

Bianchi reserves the right to modify specifications and components based on availability, without prior notice.
