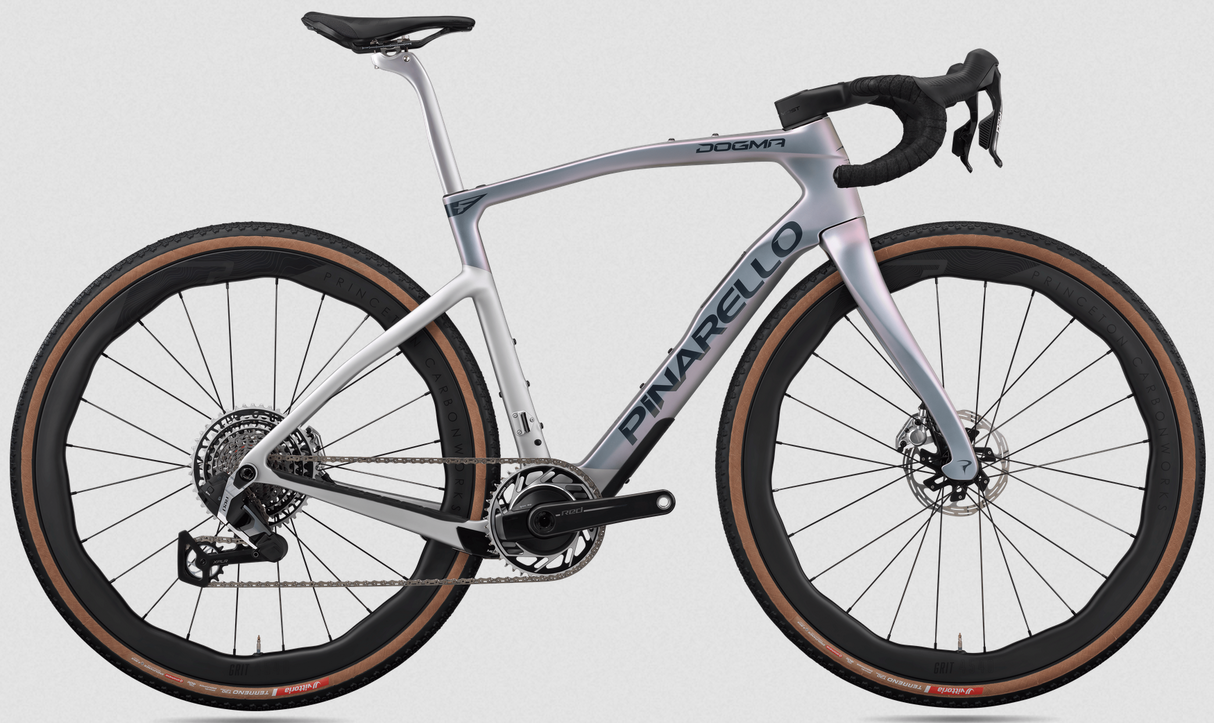

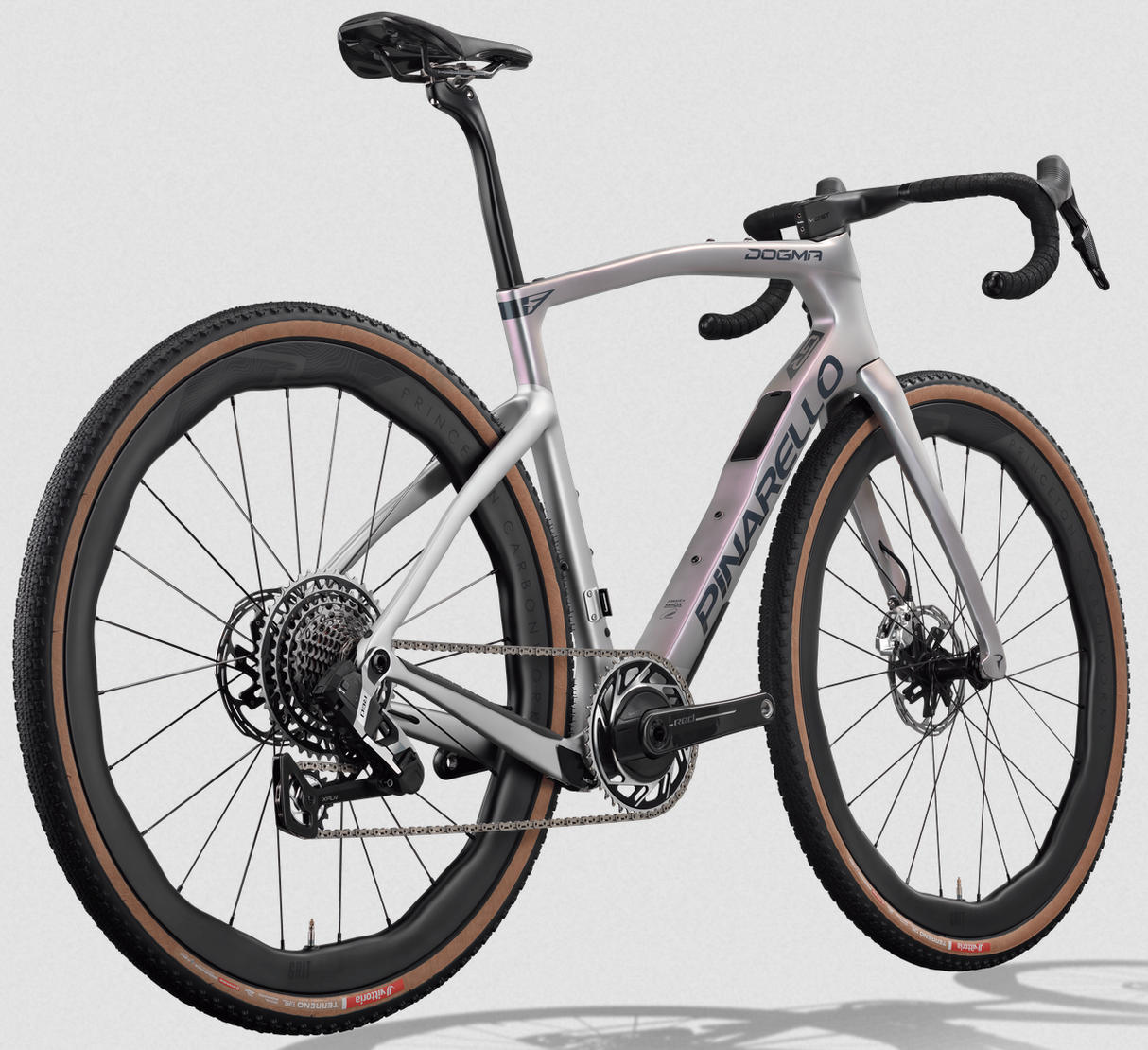

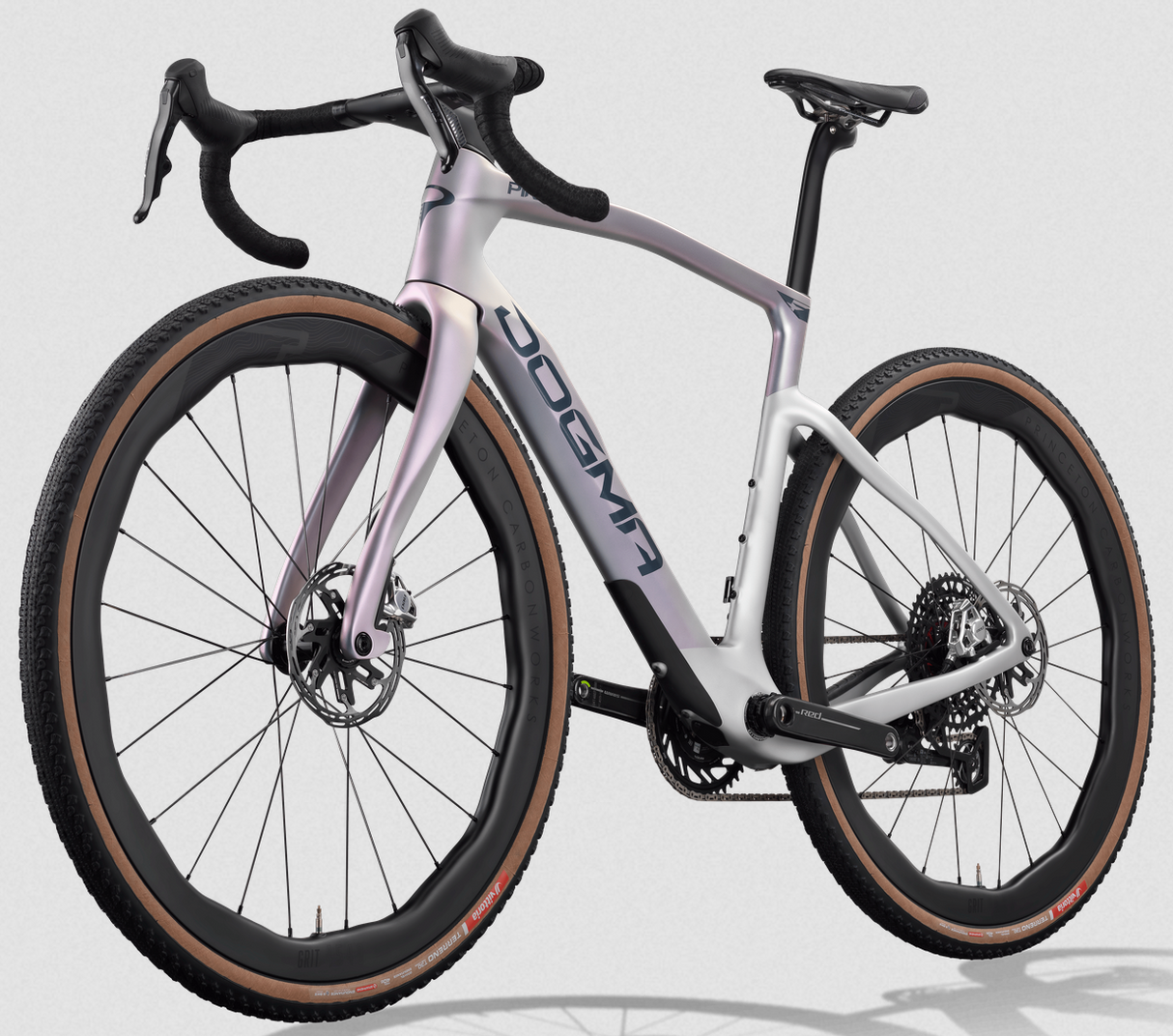

PINARELLO DOGMA GR SRAM RED XPLR AXS 1x13

The Pinarello DOGMA GR is the gravel bike that redefines the concept of speed on dirt. It is born from the meeting of the aerodynamics of the DOGMA F, the precision of the Crossista, and the off-road capabilities of the DOGMA XC. The result is a carbon gravel racing bike designed to win fast races, where every watt counts and every detail is optimized for maximum performance.

This unit is a demo bike used for photo shoots, in as-new condition: an exclusive opportunity to bring home one of the most advanced gravel bikes in the world.

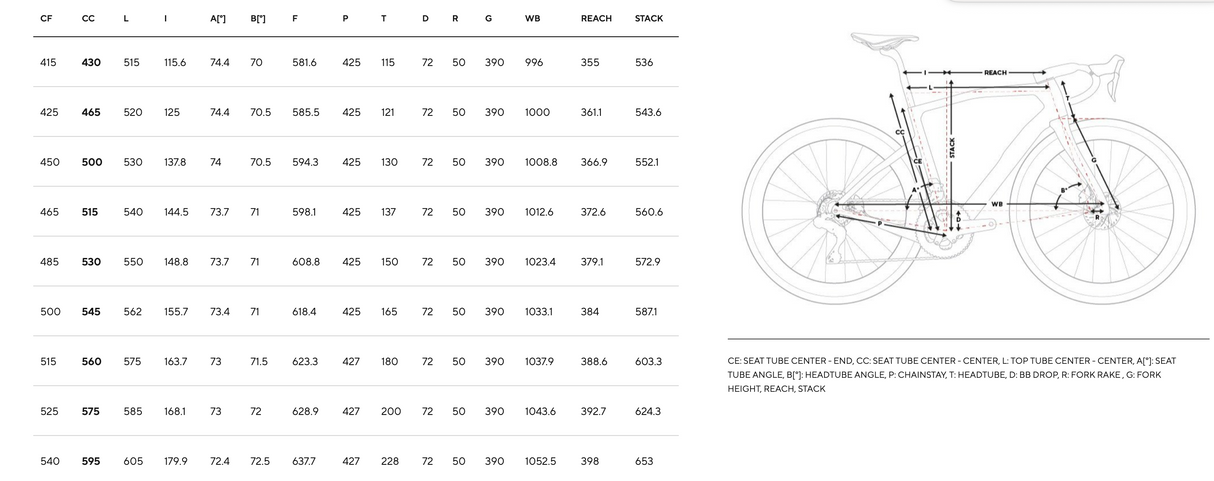

The Racing Geometry of the DOGMA GR is designed to push hard on fast terrain. The seat tube and head tube angles favor an aerodynamic position while maintaining front-end stability and handling security—essential in high-speed gravel competitions.

Headtube Bow
The aerodynamically profiled 'nose' head tube, an evolution of the concept introduced with the DOGMA F8, reduces the frontal area, improving aerodynamic efficiency.

Hidden Front Thru-Axle
Improves airflow and maintains a clean, integrated design.

E-TiCR Headset
Fully integrated headset with elliptical shape and differentiated bearings to maximize stiffness and aerodynamic penetration.

Adaptive Seatpost
Seatpost designed to balance stiffness, aerodynamics, and vibration absorption, maintaining a stable position and consistent power on rough terrain.

Talon Ultrafast GR

Integrated handlebar with 7° flare, 7° internal curvature, and double rivet for mounting

Gravel TT Bars

• Reach and stack adjustment

• Integrated computer mount

• +10° tilt

Perfect for endurance races and long, fast sections.

Real clearance up to 45 mm front and 42 mm rear, to choose gravel tires based on terrain, grip, and speed.

Technical Specifications:

Frame: TorayCa M40X with internal TiCR cable routing
Fork: Onda eTICR with ForkFlap
Groupset: SRAM RED XPLR AXS 1x13
Brakes: SRAM Red, 160 mm rotors
Handlebar: Integrated Talon Ultra Fast GR
Wheels: Princeton Grit 4540 DB
Tires: Vittoria Terreno T30 40
Seatpost: Pinarello Aero with 3D titanium head
Axles: MOST Ultra Light 12x100 / 12x142

Perfect for those seeking a top-of-the-range carbon gravel racing bike, designed for fast gravel competitions, endurance racing, and athletes who want the maximum in terms of aerodynamics, control, and traction.

Tip: to receive the bike ready to use, you can add the option to your cart “Bike assembled and adjusted by Cicli Drigani technicians” at a cost of €59. With this service, the bike will arrive assembled, adjusted, and ready to ride. Without this option, the bike will be delivered in the manufacturer's original packaging and will require some technical operations before it can be used safely.
