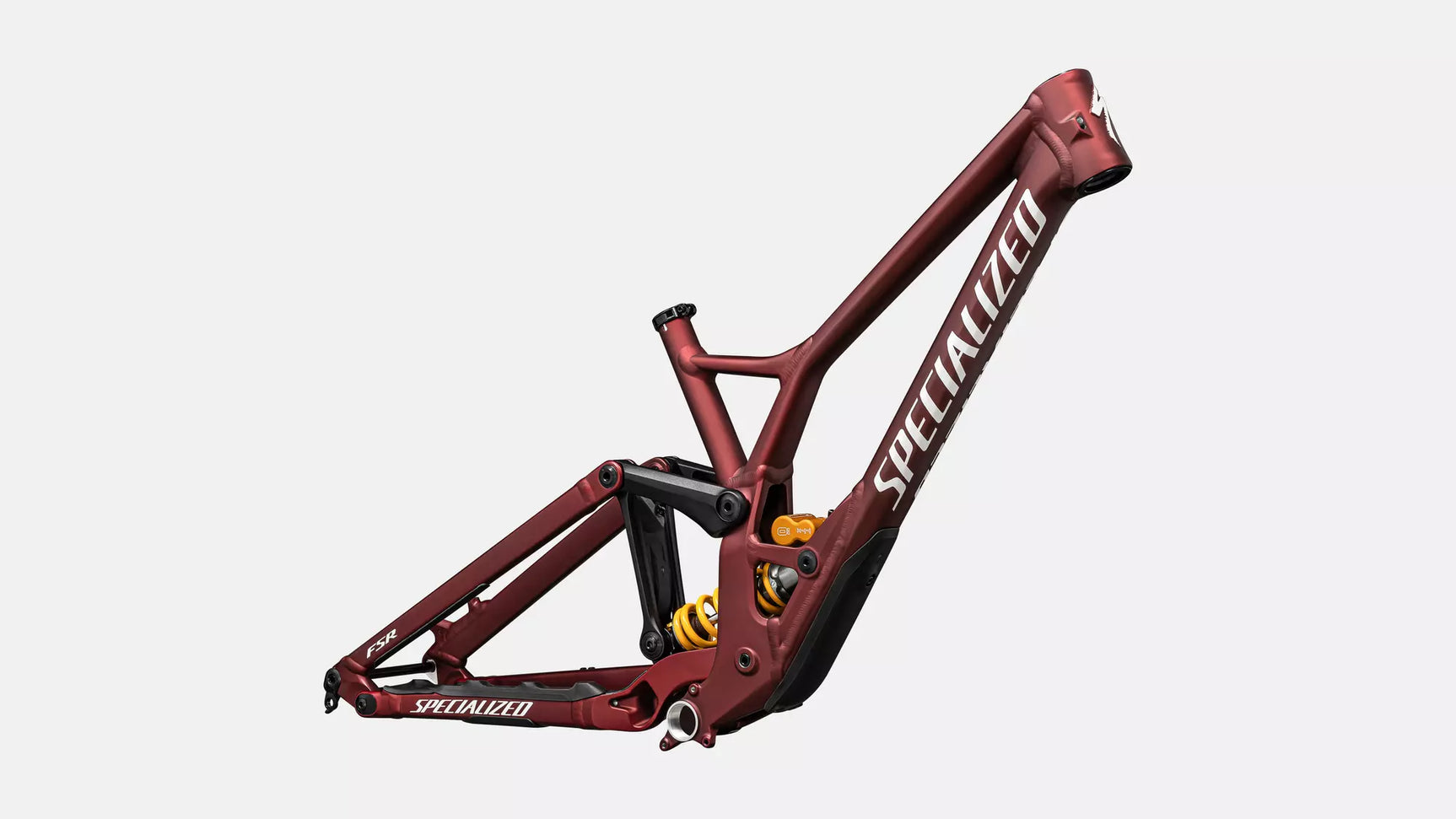

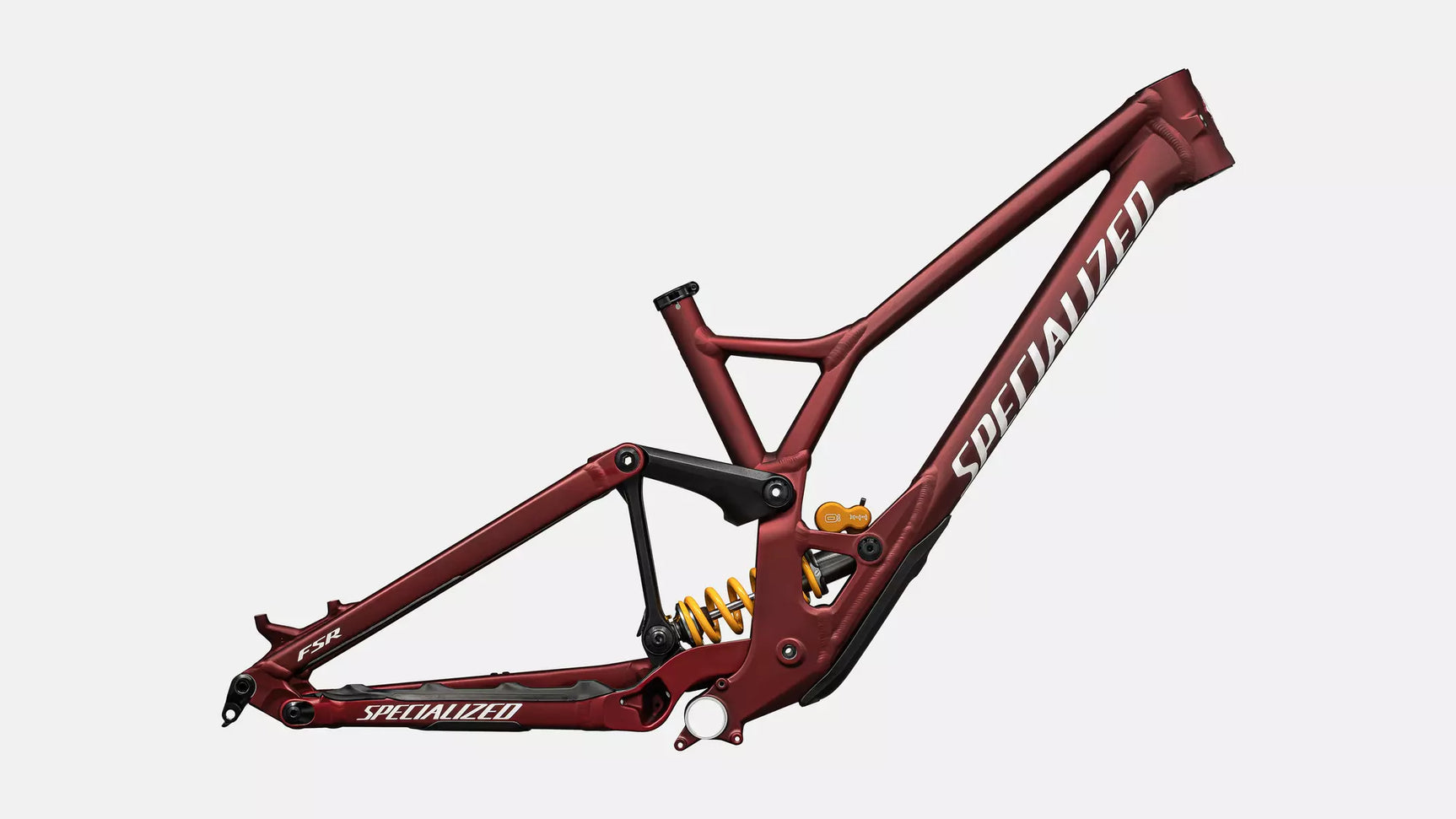

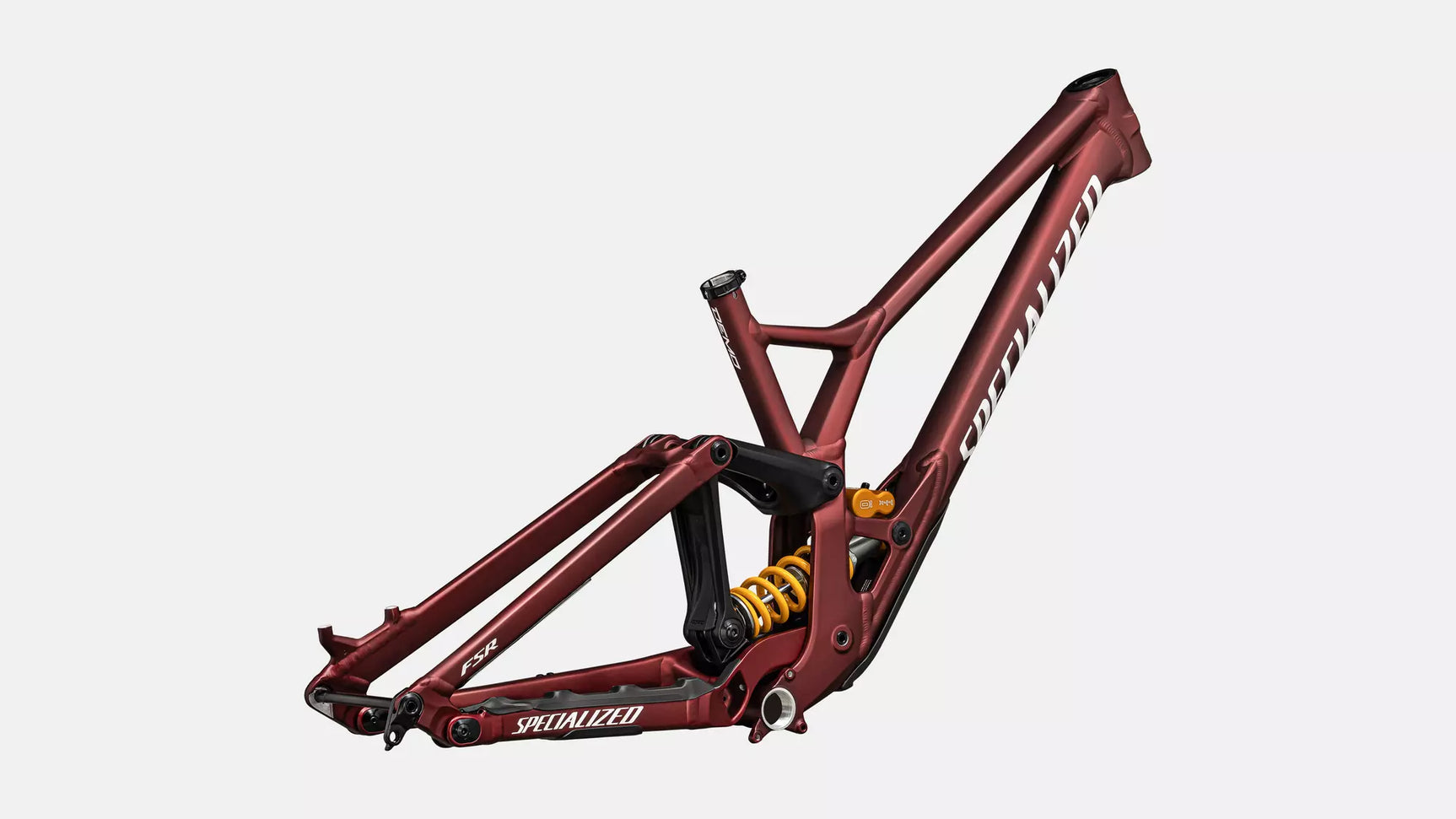

SPECIALIZED DH FRAME DEMO RACE PROMO

La maximum speed has always been the main goal in the design of the Demo. The frame was developed to offer maximum flexibility in wheel configuration, allowing the rider to use a 29” front wheel and a 27.5” rear wheel, an ideal combination to combine traction and agility. Alternatively, it is possible to fit a 29” rear wheel as well, allowing the bike to adapt to different terrain and riding styles.

The frame is supplied with Öhlins TTX22M.2 coil shock, featuring external adjustments for rebound and high- and low-speed compression.

The Demo Race M5 alloy frame is fully optimized to take advantage of the traction of a 29” front wheel and the nimbleness of a 27.5” rear wheel. Thanks to the adjustable rear triangle, the chainstay length and bottom bracket height remain properly balanced regardless of the size of the installed rear wheel.

Frame specifications
Frame: M5 alloy, DH-specific geometry for style, Horst pivot with flip chip for 27.5” or 29” rear wheel, threaded BSA bottom bracket, fully internal cable routing with optional external brake routing, Boost 148 mm rear triangle, sealed bearings, replaceable derailleur hanger, 200 mm travel.

Seatpost clamp
Aluminum, 34.9 mm

Suspension
Rear shock: Öhlins TTX22M.2 Coil, external rebound and high- and low-speed compression adjustment, Trunnion mount, size 225 x 75 mm

Cockpit
Saddle: Body Geometry Henge DH, hollow titanium rails, 130 mm width
Seatpost: Thomson, aluminum, straight, 12° clamp

Weight
Frame weight: 5,46 kg (12 lb 0.6 oz)
Weighed size: S3

Weights refer to production frames painted as shown. Actual weight may vary depending on color, frame size and component tolerances. Specifications are subject to change without notice.
