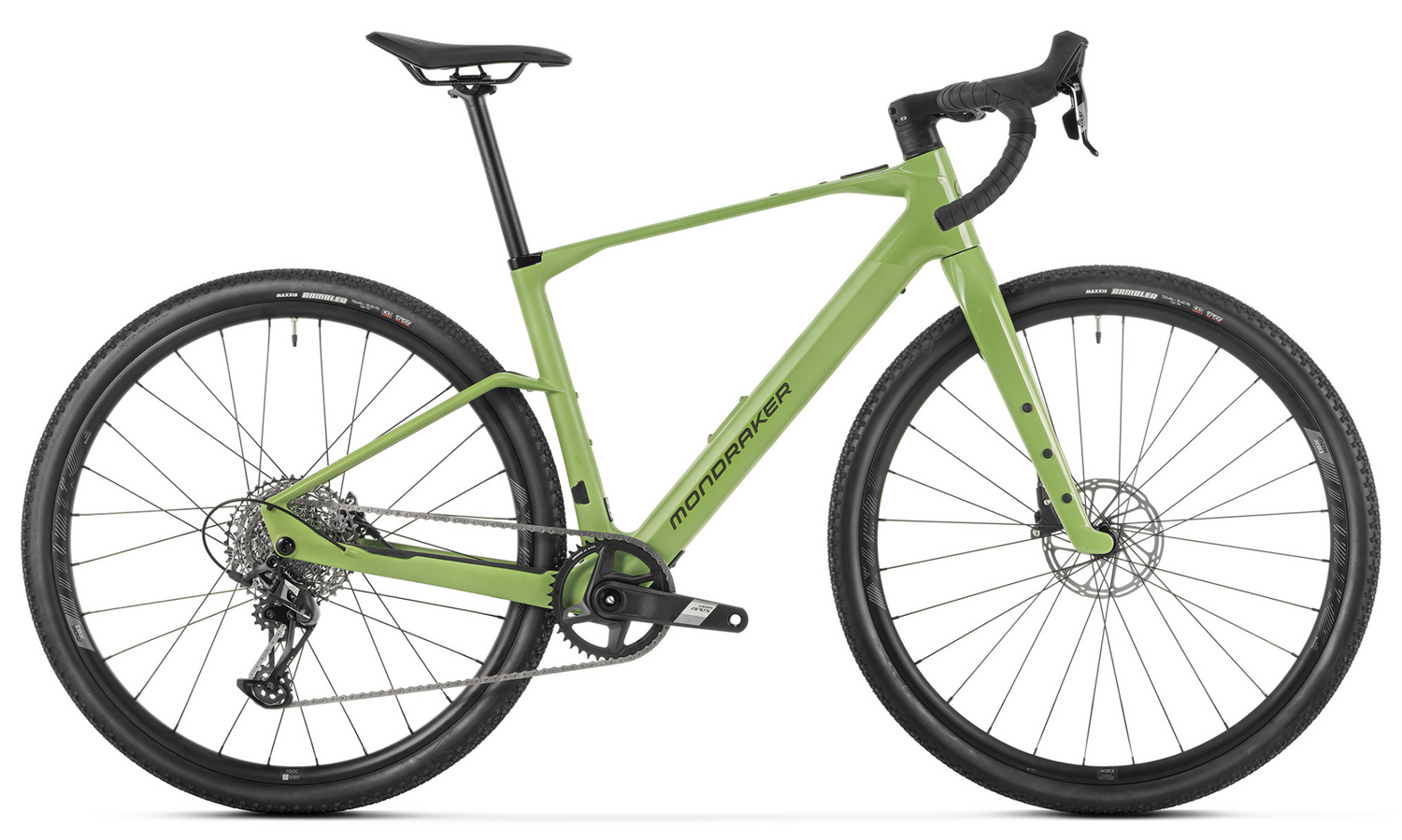

MONDRAKER DUSTY S

The Mondraker Dusty S is a lightweight and refined e-gravel bike, designed to provide natural and discreet assistance without compromising the riding experience. Thanks to the Mahle X20 system and the Stealth Air carbon frame, it combines responsiveness, comfort, and range, making it ideal for long rides on asphalt, dirt, and mixed terrain.

The Mahle X20 motor, integrated into the rear hub, ensures smooth and silent support, with an extremely natural response to pedaling. The internal 350 Wh battery keeps the weight low and the aesthetics clean, while the option to add an external battery allows for extended range on longer adventures.

The Stealth Air carbon frame is designed to offer a balance between stiffness and comfort, with internal HHG cable routing and compatibility with 1x or 2x drivetrains. The Dusty S is intended for those seeking an agile, high-performance e-gravel bike with a feel very close to that of a traditional bicycle, but with the support of electric assistance when needed.

With an indicative weight of only 13.4 kg without pedals, it positions itself among the lightest and most natural-feeling e-gravel bikes in its category.

Technical Specifications:

Frame
e-Gravel Stealth Air Carbon
386 EVO Press-Fit Bottom Bracket
Tapered Head Tube
Internal HHG Cable Routing
Integrated Non-Removable Internal Battery
12×142 mm Rear Axle
Compatible with 1x or 2x Drivetrains
Flat Mount Brakes
Speed Sensor Integrated in the Dropout

Fork
Stealth Air Carbon
Tapered Steerer Tube
Internal HHG Cable Routing
Flat Mount Brake Mount

Headset
Onoff IS52/IS52
Sealed Bearings
Internal Cable Routing

Cockpit
Onoff Semi-Integrated Stem
−7° Angle
Lengths:
S: 60 mm
M: 70 mm
L: 80 mm
XL: 90 mm

Onoff S3 GR Handlebar, 16° flare
Widths:
S: 420 mm
M: 420 mm
L: 440 mm
XL: 460 mm

Onoff HEX Handlebar Tape

Seatpost and Saddle
Onoff S3 0-R Seatpost Ø 27.2 mm, length 400 mm
Fizik Terra Argo X7 Saddle, 150 mm

Brakes
SRAM Apex 1
2-Piston Calipers
Centerline 160 mm Front and Rear Discs

Wheels
MDK-XG1
25 mm Internal Width
Tubeless Ready
Novatec D041 Front Hub, 12×100 mm, 6-bolt
Mahle X20 Rear Unit with MS Freehub

Tires
Maxxis Rambler 700×45
EXO Protection
Tubeless Ready
120 TPI

Drivetrain
SRAM Apex 1 Wide Crankset
Lengths:
S: 165 mm
M: 170 mm
L: 172.5 mm
XL: 175 mm

SRAM X-Sync Eagle 40T Chainring
Mahle DUB Pressfit Bottom Bracket with Torque Sensor
SRAM GX Eagle 12-Speed Rear Derailleur
SRAM PG-1210 11-50 Cassette
Mondraker M076 Derailleur Hanger

Electrical System
Mahle X20 Motor Integrated into Rear Hub
Mahle X20 iX350 350 Wh Internal Battery
Optional Mahle e185 185 Wh External Battery
Pulsar One Wireless Display

Weight
13.4 kg without pedals

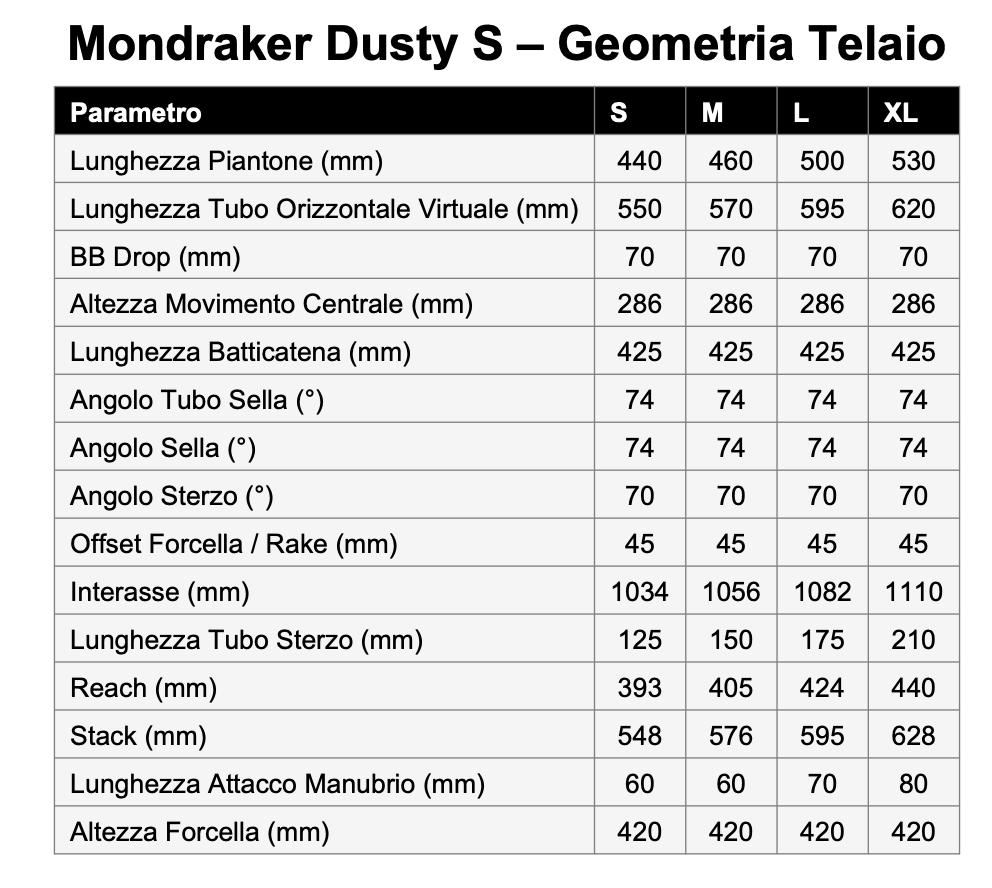

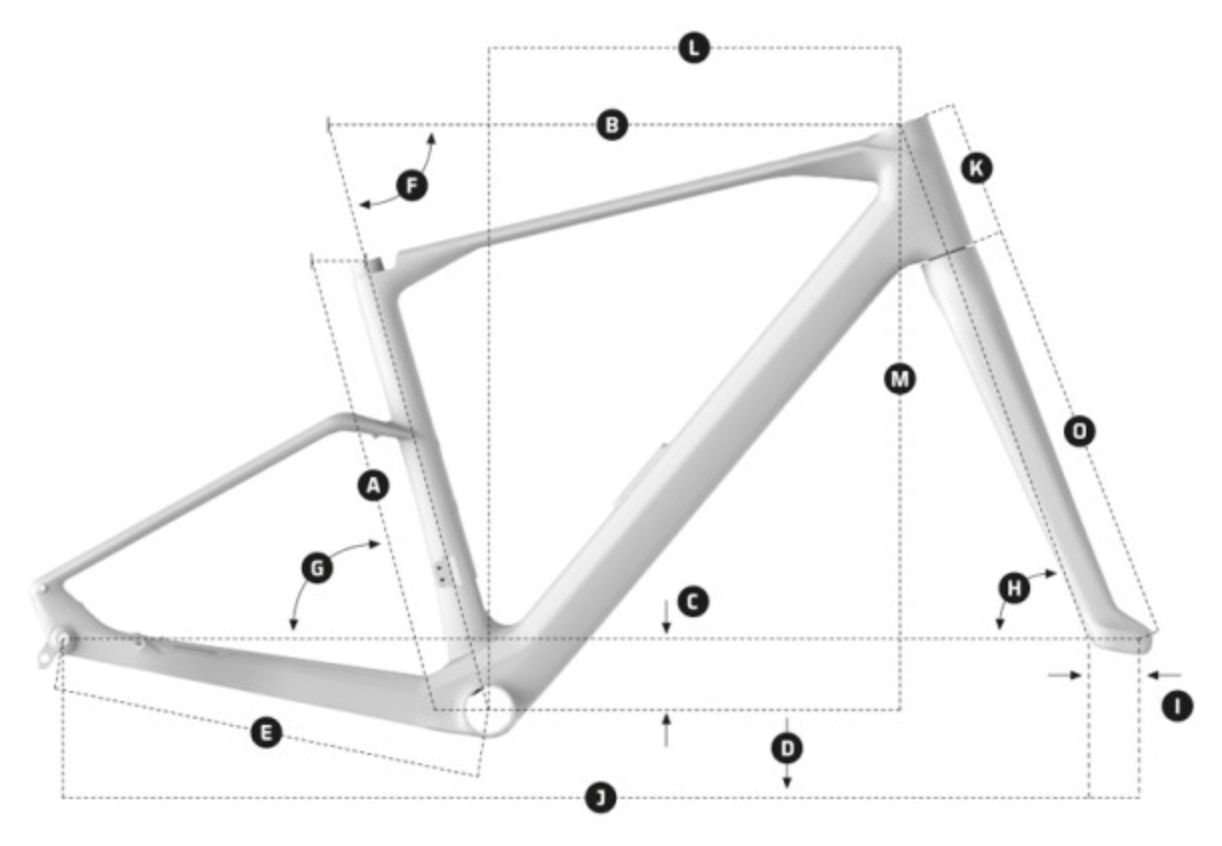

Size Chart – Mondraker Dusty S
