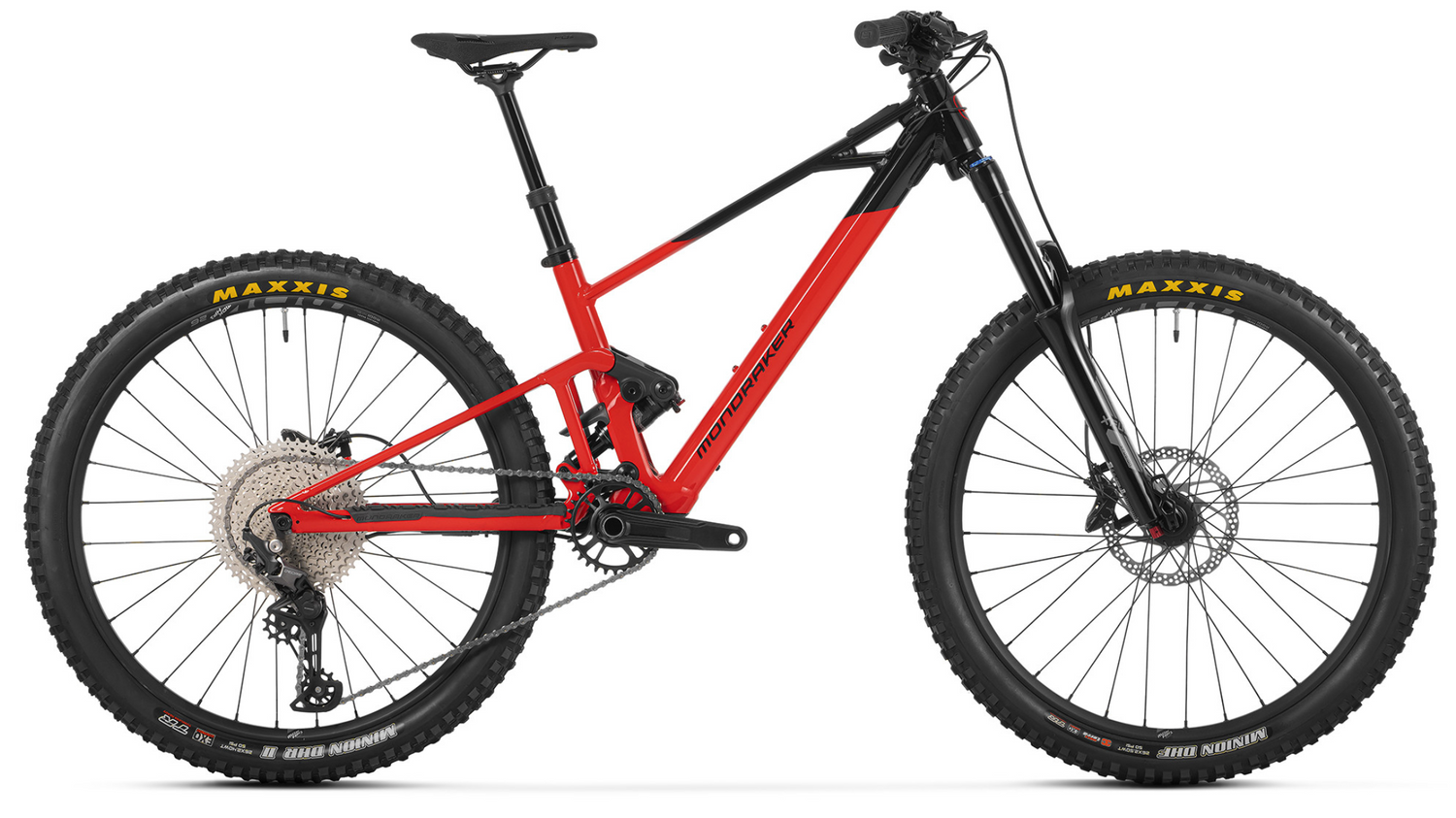

"MONDRAKER F-PLAY 26"

If you want young riders to genuinely improve in mountain biking, they need a bike designed with the same care and technology as adult models. This is the idea behind the Mondraker F-Play range: e-bikes conceived to maximize fun, control, and technical growth for young riders.

The F-Play was developed in parallel with the F-Trick to offer riding sensations as similar as possible between the muscle-powered and electric versions. Frame, kinematics, travel, and geometry are shared, making the two bikes nearly indistinguishable. The result is a youth e-MTB with the authentic feel of a real mountain bike, but with electric assistance when needed.

The Alloy Stealth Evo frame integrates a 250 Wh battery into an extremely slim seat tube, maintaining a clean and compact design. The updated Zero Suspension system improves sensitivity, responsiveness, and progression, allowing every pedal stroke to be maximized.

The F-Play 26 version raises the bar even further with 130 mm of rear travel and 140 mm at the front, making it perfect for tackling real trails, just like an adult bike.

Technical Specifications:

Frame
F-Play 26 in 6061 Stealth Evo alloy
Hydroformed tubes
Updated Zero Suspension system
130 mm rear travel
Bolted monobloc upper link
Integrated non-removable internal battery
Tapered head tube
Internal HHG cable routing
BSA bottom bracket
1x drivetrain compatible

Size
Single – 350 mm seat tube length

Shock
X-Fusion O2 Pro R
Size 165×45 mm
Low-speed rebound adjustment
Air preload
Trunnion top mount

Fork
X-Fusion Slant RC 26
140 mm travel
Air fork
15×100 mm axle
34 mm stanchions
41 mm offset
Lockout, rebound, and preload adjustments

Headset
Onoff ZS44/ZS56
Sealed ACB bearings

Cockpit
Stem: Onoff S3, 30 mm, 0°, forged 6061 alloy
Handlebar: MDK XC 1.0 in 6061 alloy
Width 680 mm
Rise 25 mm
Backsweep 9°
Upsweep 5°
Grips: Onoff Beehive lock-on, 135 mm

Seatpost and Saddle
Internal telescopic seatpost X-Fusion Manic LC
Diameter 31.6 mm
125 mm travel
Saddle SDG Fly JR

Brakes
Shimano MT520 4-piston
RT56 180 mm discs front and rear
Shimano MT501 Servo Wave alloy levers

Wheels
MDK-XP1 26 TLR
25 mm internal width
Tubeless ready

Tires
Front: Maxxis Minion DHF 26×2.5 WT, 3C MaxxTerra, EXO, tubeless ready
Rear: Maxxis Minion DHR II 26×2.4, EXO, tubeless ready

Drivetrain
Prowheel DMJ-CR094S-TT cranks, 155 mm
30T steel chainring
Shimano Deore M6100 derailleur, 12-speed
SunRace CSMZ600 cassette, 11-51
Mondraker M077 derailleur hanger

Electrical System
Mahle X-30 motor
Mahle iX250 Wh battery
iWoc ONE Head Unit display

Weight
17.8 kg without pedals

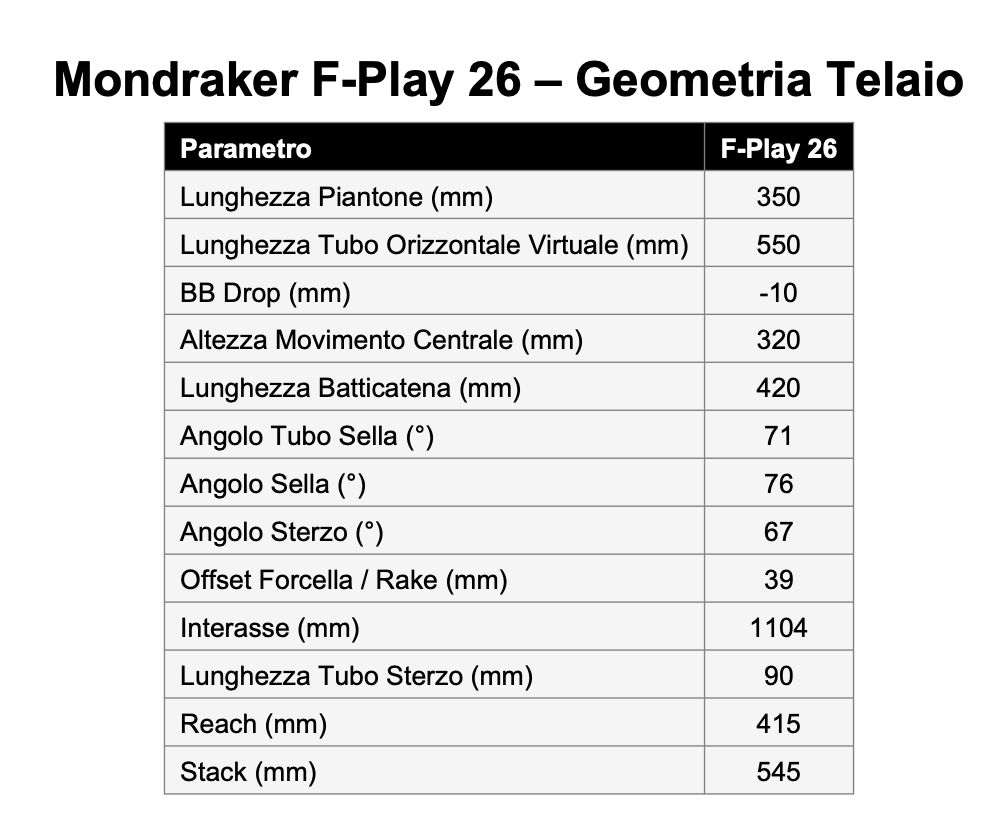

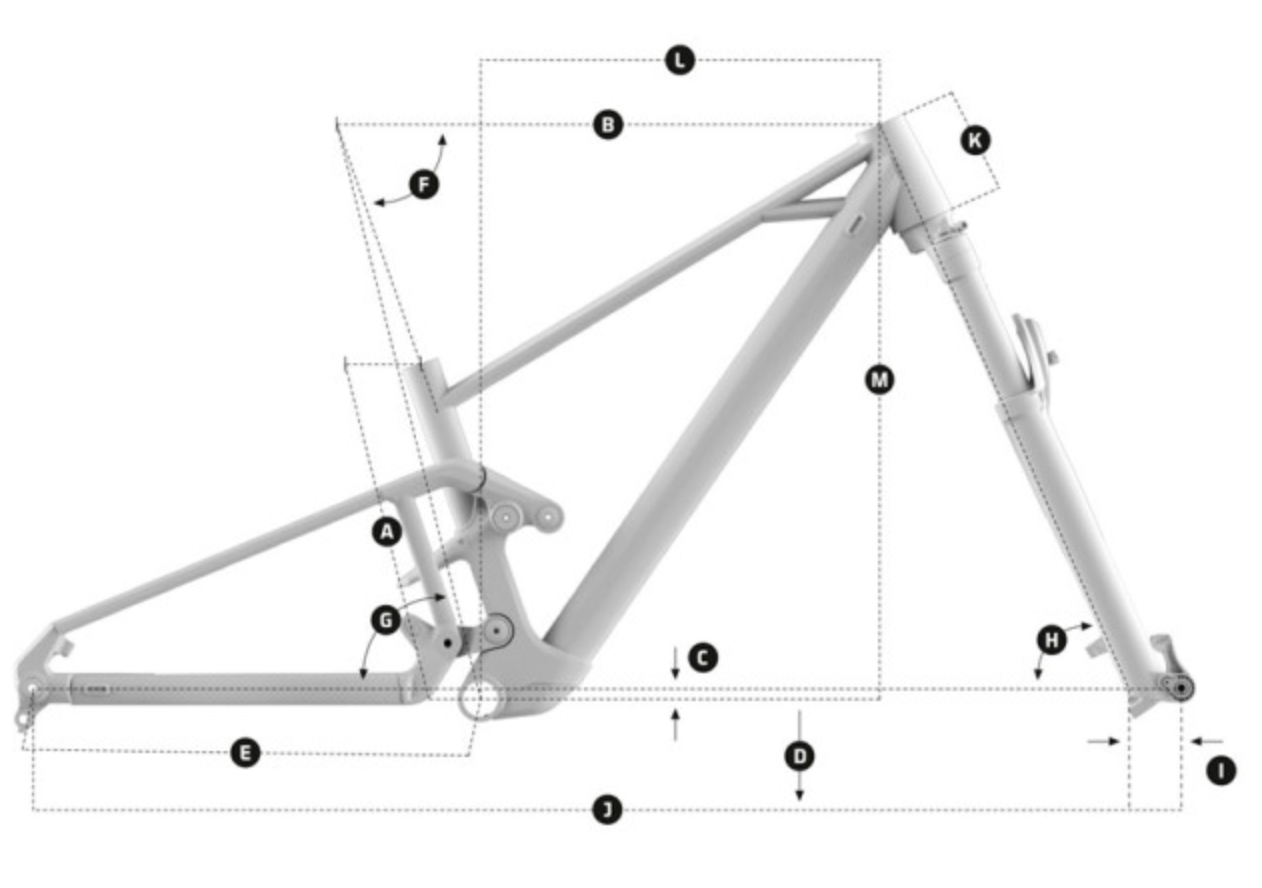

Mondraker F-Play Size Chart
