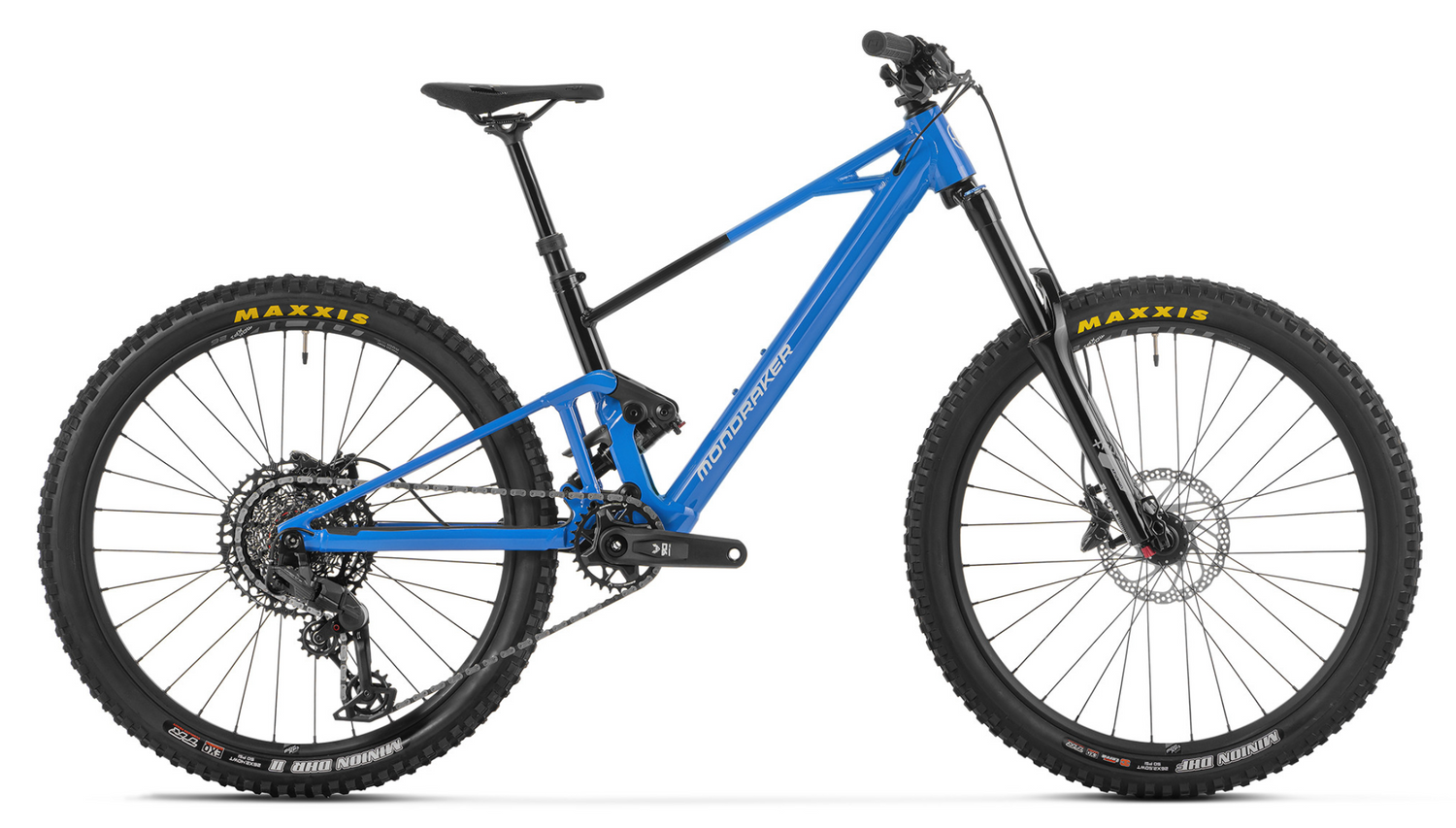

"MONDRAKER F-TRICK 26"

The Mondraker F-Trick 26 is a true junior-format trail mountain bike, designed with the same philosophy and technology as the top-of-the-range adult models. Forward Geometry, Zero Suspension system, generous travel, high-level components, and wide tires: everything that makes a modern, high-performance MTB has been adapted to the needs of younger riders.

Available in 24” and 26” versions, the F-Trick is born to accompany young riders in their technical development, offering control, safety, and plenty of fun on real trails. The frame design follows the lines of the latest Mondraker models like the Neat and F-Podium, with clean tubing and a modern geometry that makes it almost indistinguishable from an adult bike, but in a more compact format.

The update to the Zero Suspension system improves initial sensitivity, progression, and responsiveness, increasing travel compared to the previous range. The F-Trick 26 thus achieves 130 mm of rear travel and 140 mm at the front, ready to tackle technical trails with great safety and control.

Technical Specifications:

Frame
F-Trick 26 in 6061 Stealth Evo alloy
Hydroformed tubes
Updated Zero Suspension System
130 mm rear travel
Bolt-on monobloc upper link
Boost 12×148 mm rear axle
UDH derailleur hanger
BSA 73 mm bottom bracket
HHG internal cable routing
Dedicated 1x drivetrain

Size
Single – 350 mm seat tube length

Shock
X-Fusion O2 Pro R
Size 165×45 mm
Low-speed rebound adjustment
Air preload
Trunnion top mount

Fork
X-Fusion Slant RC 26
140 mm travel
Air fork
15×100 mm axle
34 mm stanchions
41 mm offset
Lockout, rebound, and preload adjustments

Headset
Onoff ZS44/ZS56
Sealed ACB bearings

Cockpit
Stem: Onoff S3, 30 mm, 0°, forged 6061 alloy
Handlebar: MDK XC 1.0 in 6061 alloy
Width 680 mm
Rise 25 mm
Backsweep 9°
Upsweep 5°
Grips: Onoff Beehive lock-on, 135 mm

Seatpost and Saddle
Internal telescopic seatpost X-Fusion Manic LC
Diameter 31.6 mm
125 mm travel
SDG Fly JR saddle

Brakes
Shimano MT520 4-piston
RT56 180 mm discs front and rear
Shimano MT501 Servo Wave alloy levers

Wheels
MDK-XP1 26 TLR
25 mm internal width
Tubeless ready

Tires
Front: Maxxis Minion DHF 26×2.5 WT, 3C MaxxTerra, EXO, tubeless ready
Rear: Maxxis Minion DHR II 26×2.4, EXO, tubeless ready

Drivetrain
SRAM 90 T-Type cranks, 155 mm
30T alloy chainring, T-Type
SRAM Eagle T-Type 12-speed derailleur
SRAM XS-1270 cassette, 10-52

Pedals
SDG Slater JR

Weight
14.3 kg without pedals

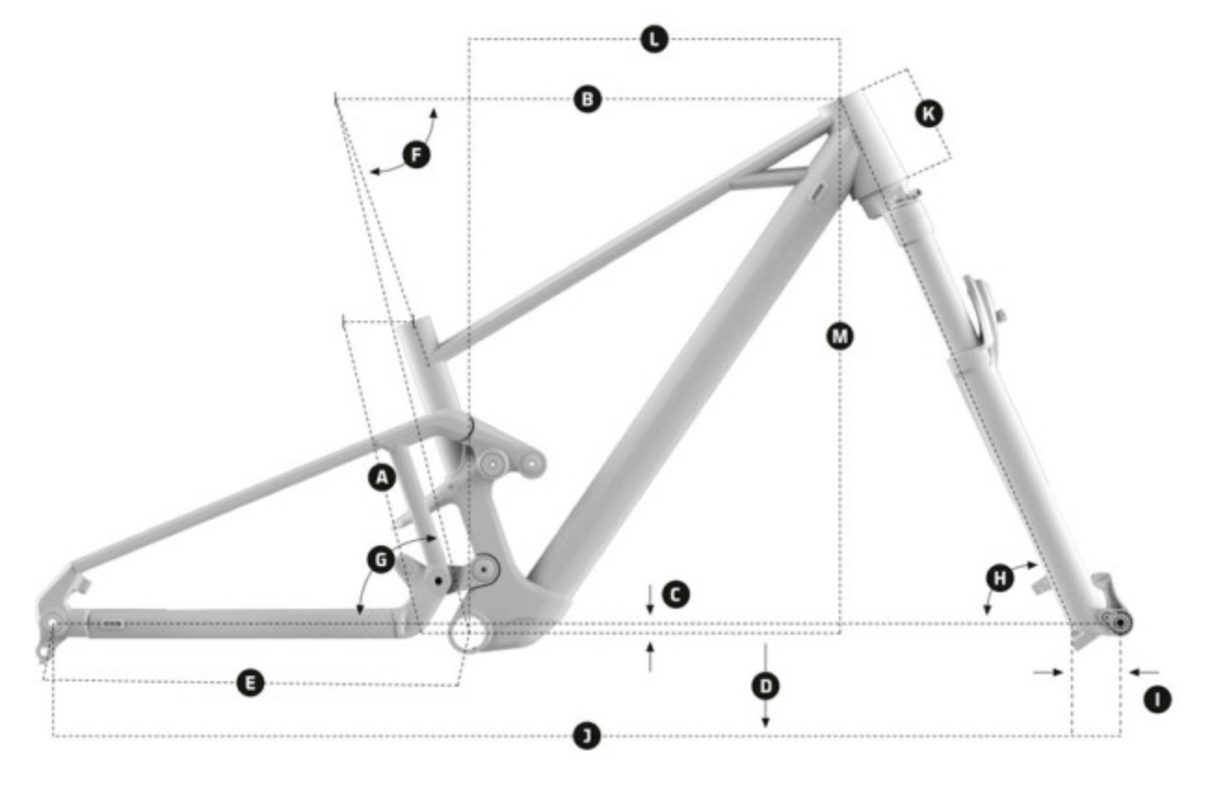

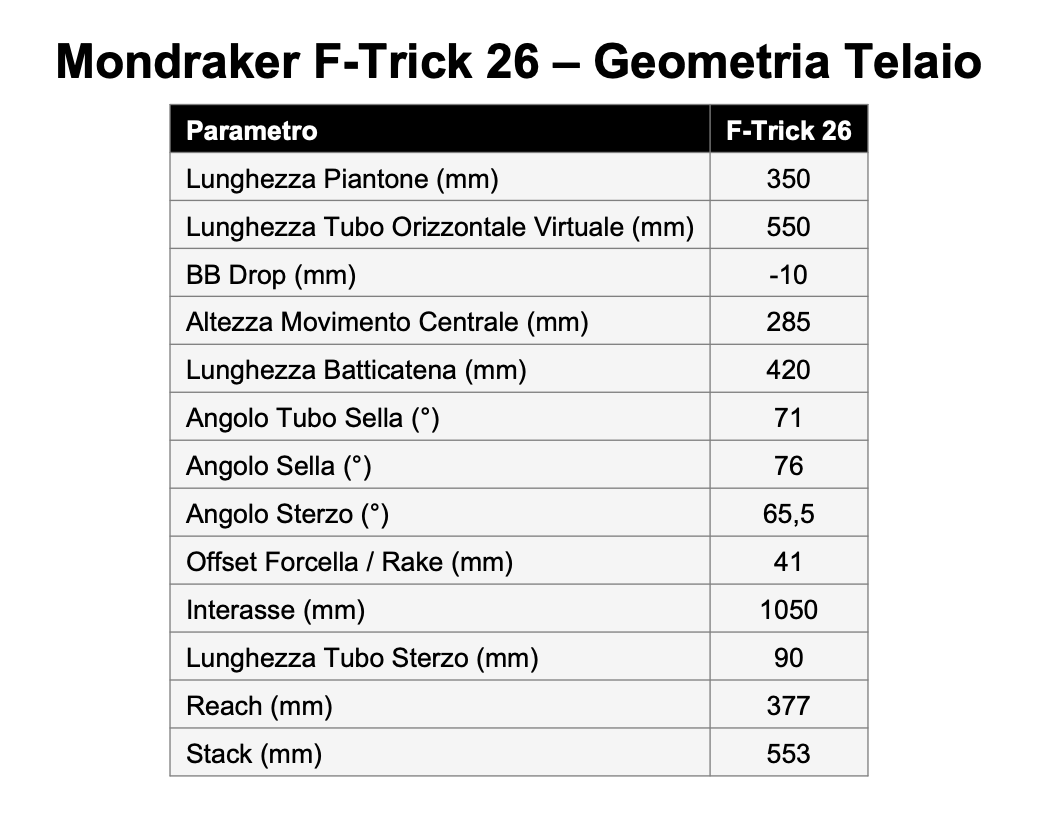

Wheel Size Chart – Mondraker F-Trick
