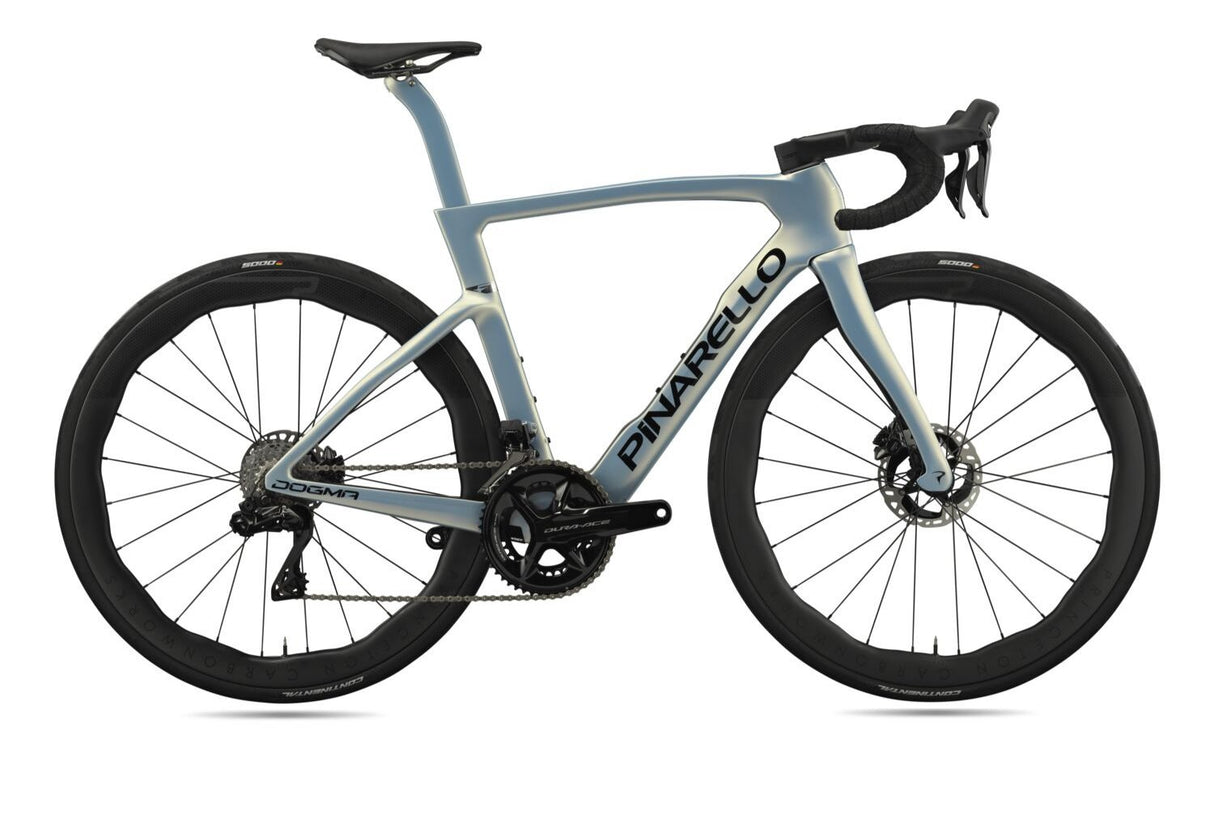

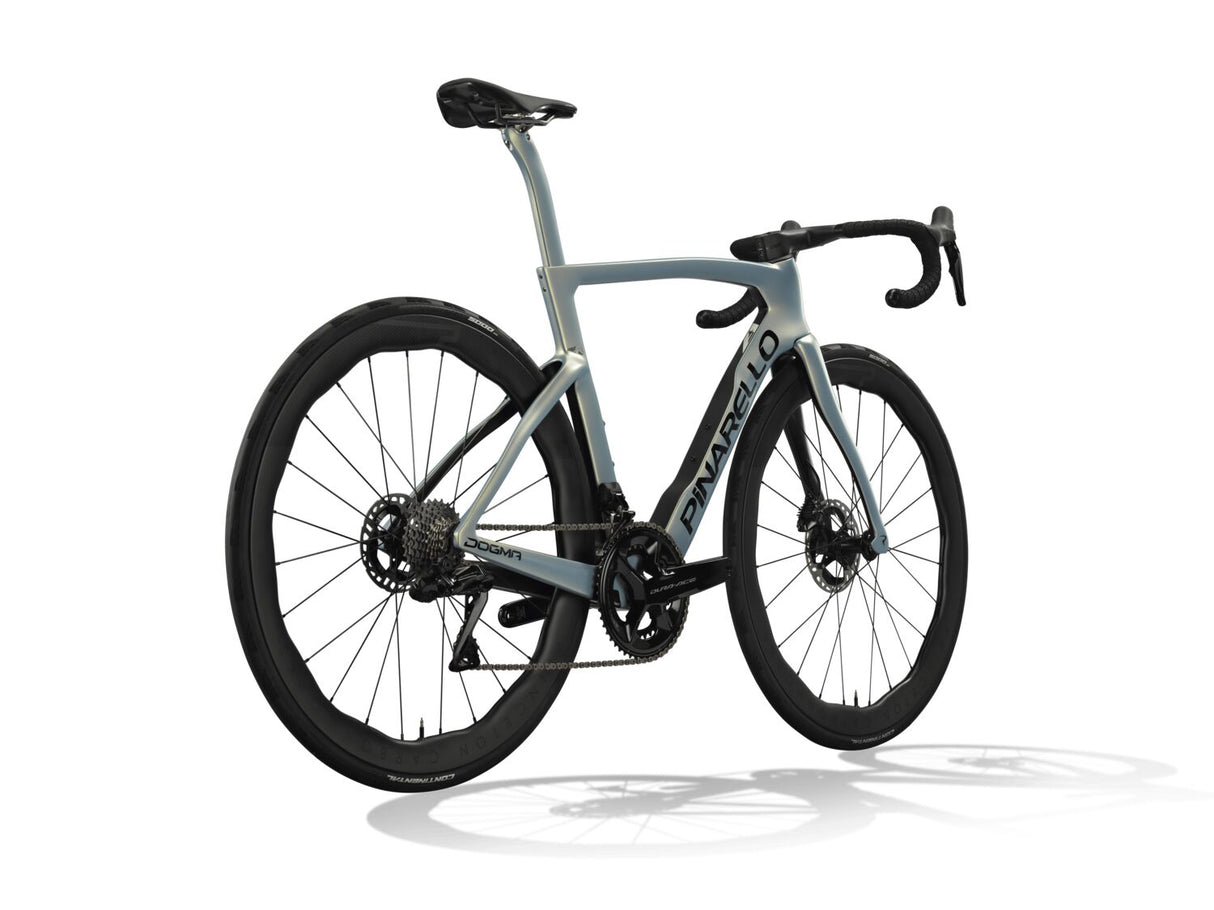

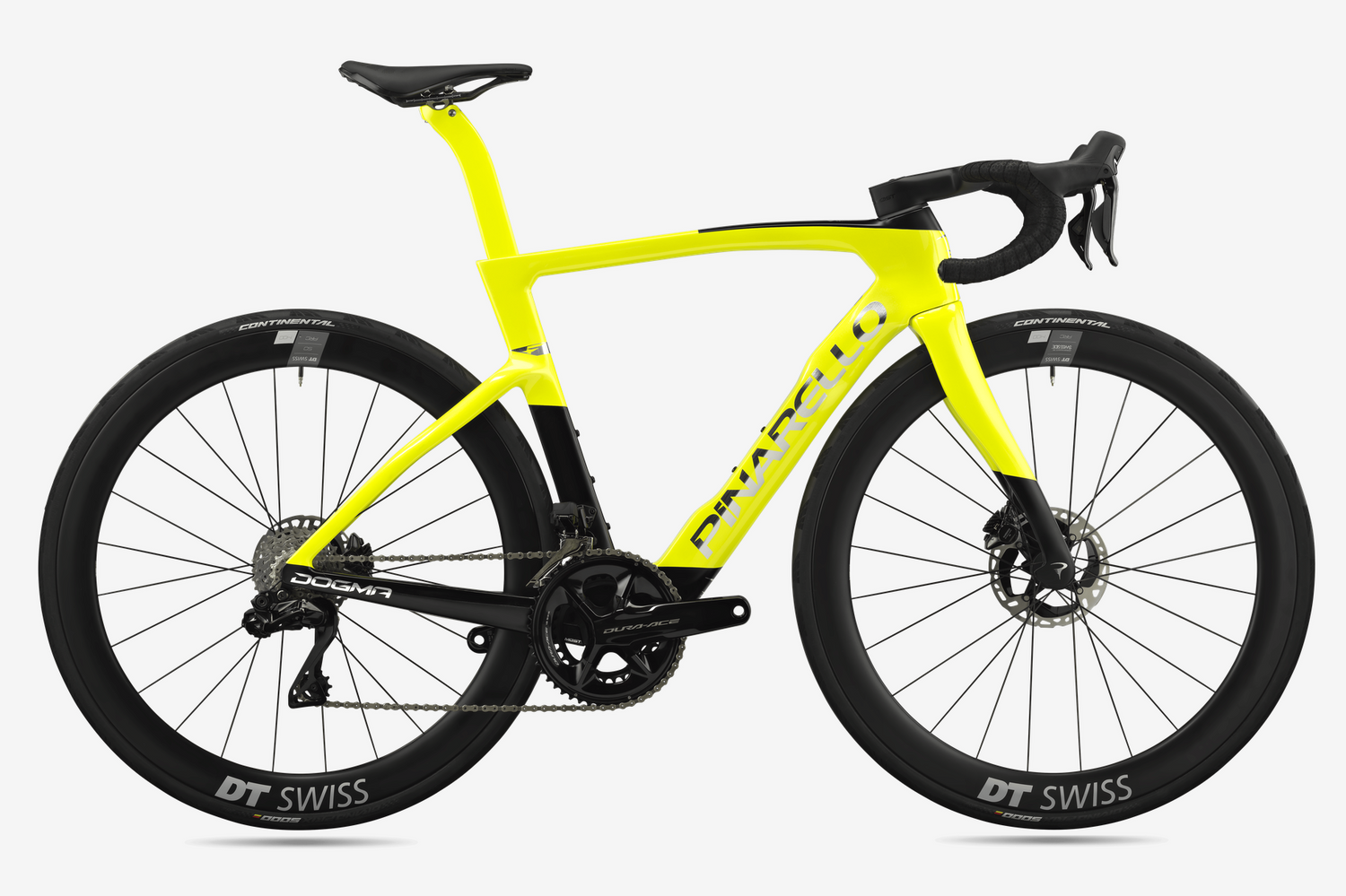

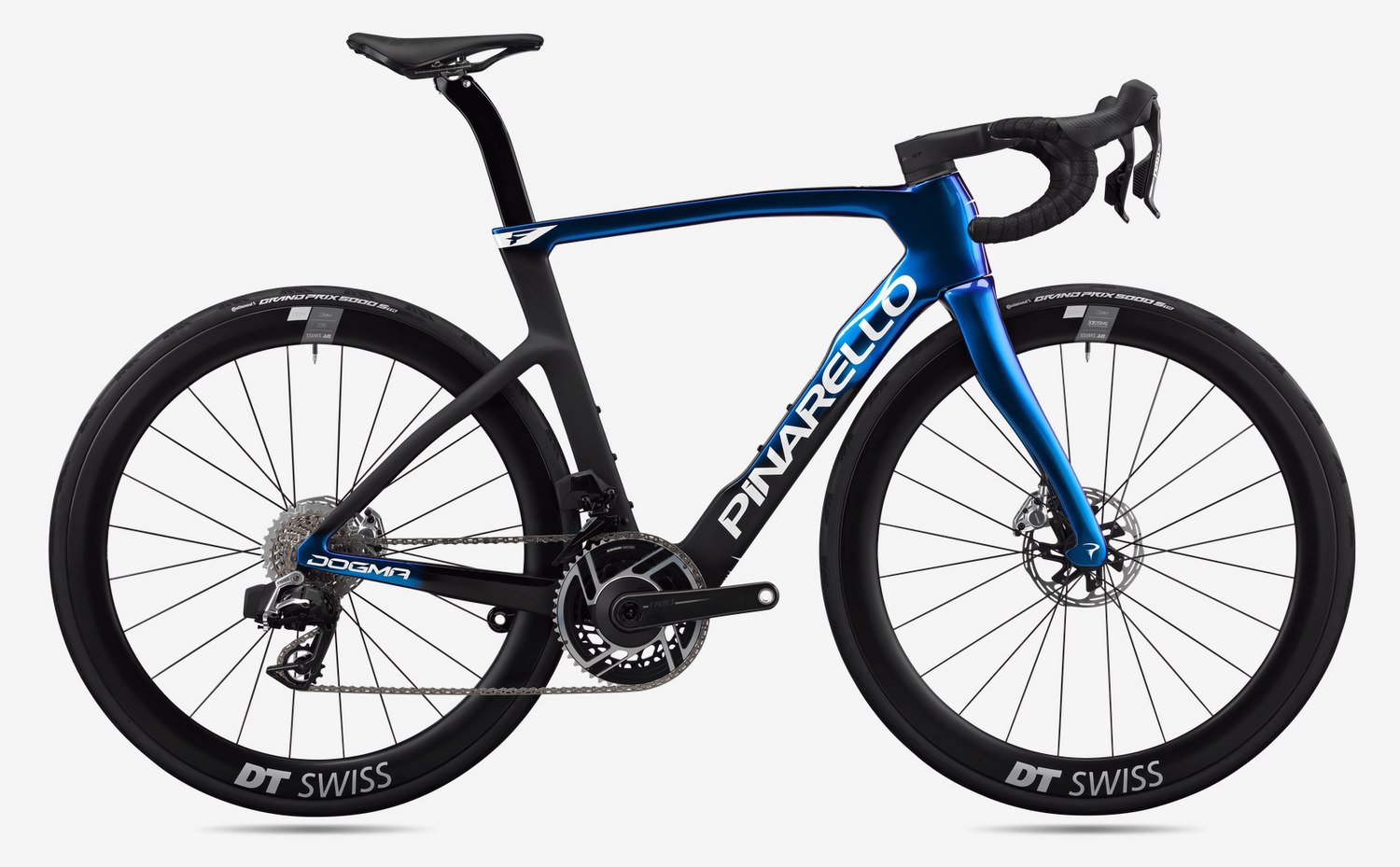

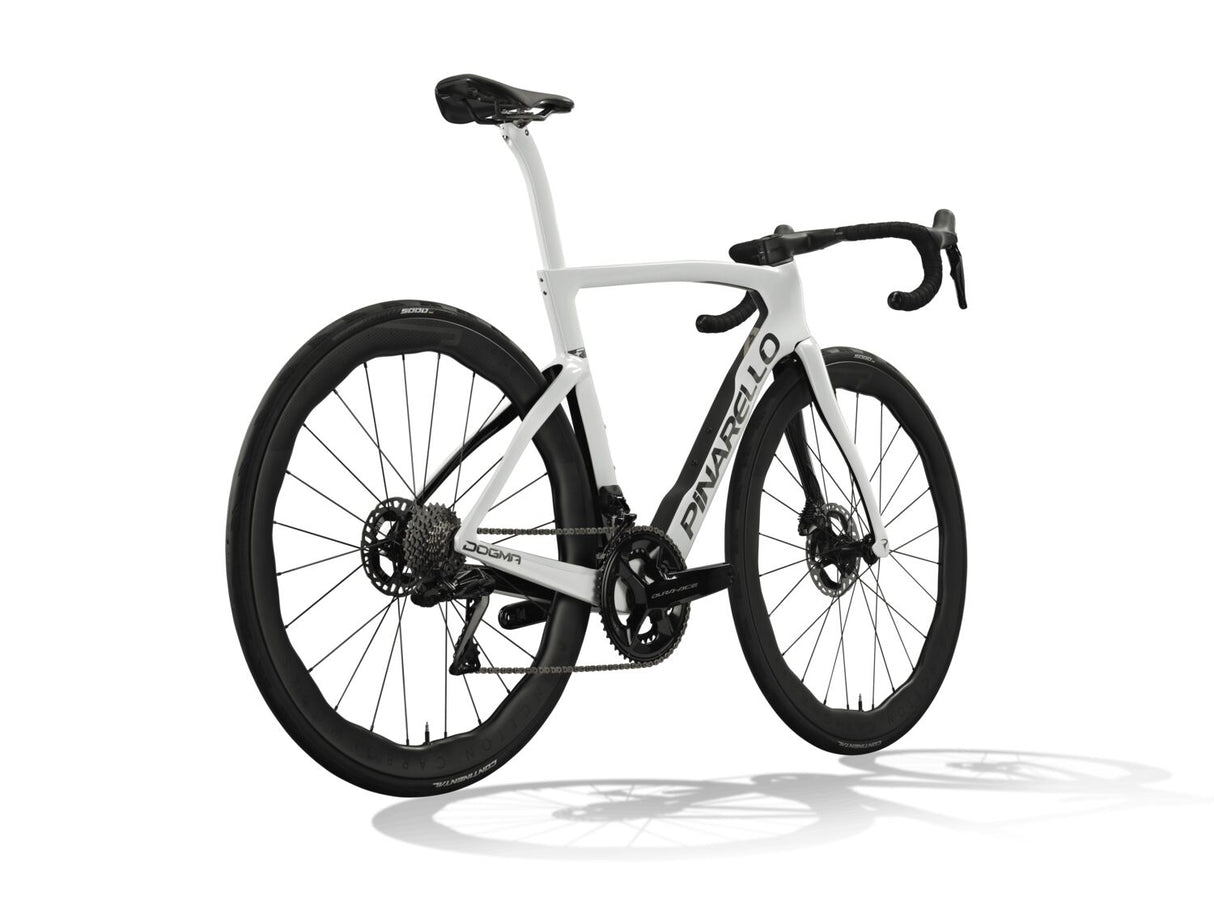

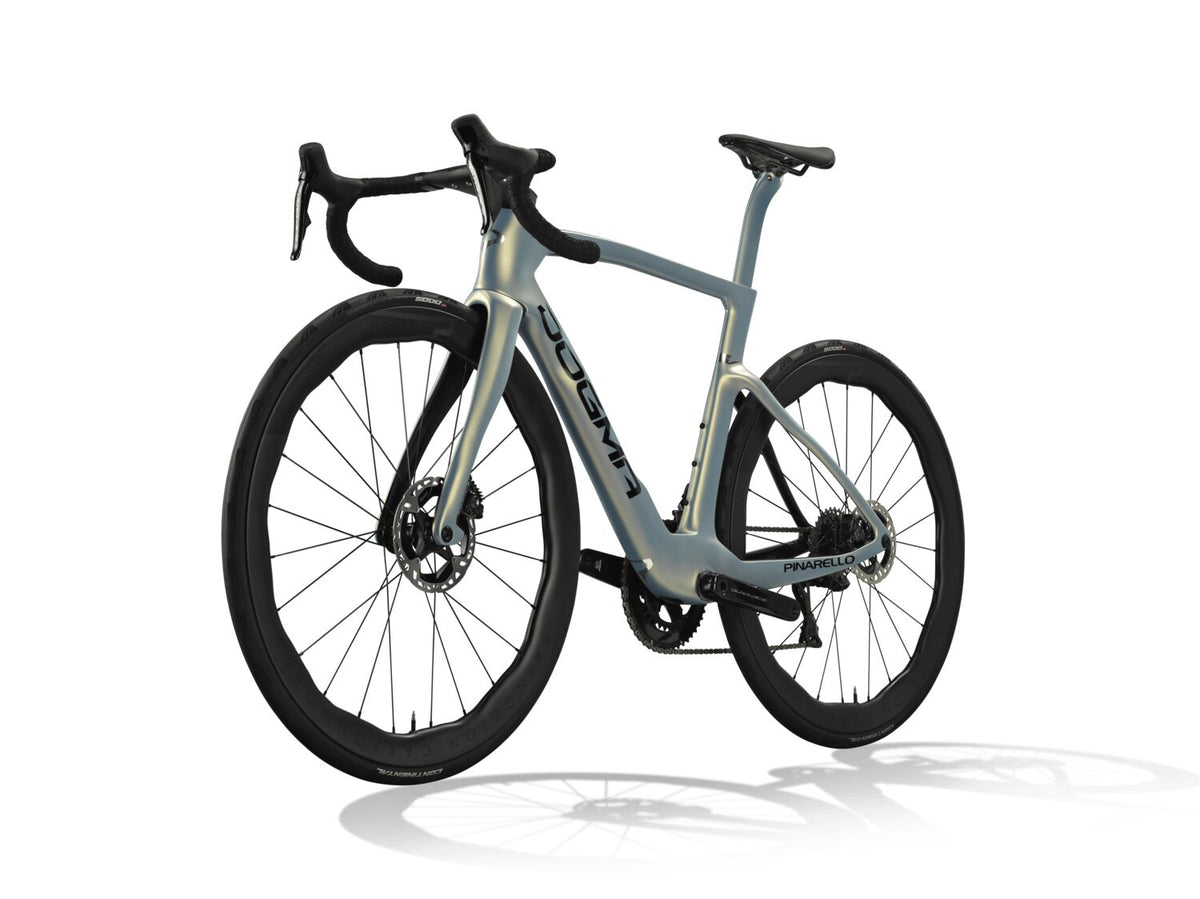

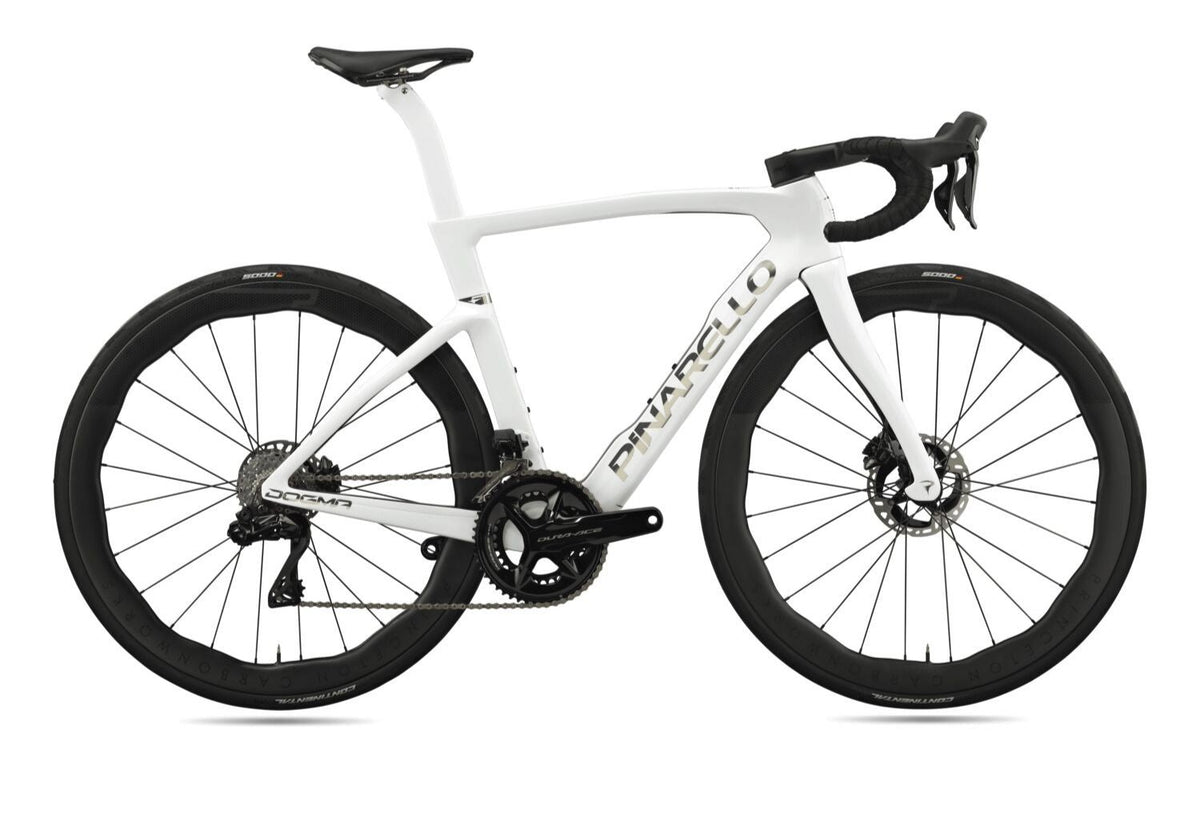

PINARELLO DOGMA F DURA ACE Di2

The Pinarello Dogma F Dura-Ace Di2 represents the absolute pinnacle of the Pinarello road racing range. Every line, every section, and every component has been developed to achieve the perfect balance between aerodynamics, lightness, stiffness, and control, the result of close collaboration between designers and engineers and of experience gained at the highest levels of professional cycling.

It is a top-of-the-range carbon road bike, designed for those seeking uncompromising performance.

The frame uses the advanced TorayCa M40X carbon fiber, already tested on the X-Light models and in the WorldTour arena. This material guarantees:

• Extremely high tensile modulus

• Greater lateral frame stiffness

• Direct and immediate power transfer

The result is an extremely responsive bike, perfect for accelerations and sprints.

Redesigned Down Tube
The down tube has been slimmed down and reshaped to improve frontal aerodynamic efficiency.

New Aero-Keel BB
Technology derived from the hour record projects: the down tube is rotated by 3.5° to create a keel shape that improves aerodynamics in the bottom bracket area by up to 1.2%.

Optimized Top Tube
The front section has been reduced by 8 mm in width, improving aerodynamic penetration.

Elliptical headset
New head tube design with an elliptical shape and a headset with differentiated bearings, to reduce width without sacrificing stiffness.

Integrated Thru Axles
New shorter thru axles with bolts integrated into the carbon for a clean design and lower air resistance.

New Onda eTICR fork
Slimmer profile and 47 mm rake, developed with feedback from professionals to improve stability, handling, and aerodynamics.

Integrated Seatpost Clamp
Fully integrated seatpost clamp, lighter, more aerodynamic, and protected from dust and sweat.

MOST Talon Ultra Fast cockpit
Lighter and more aerodynamic integrated handlebar, designed to promote a more efficient riding position.

Features:

Frame: TorayCa M40X, internal cable routing TiCR™, Italian threaded bottom bracket
Fork: eTICR Onda Fork with ForkFlap™, 1.5” steerer tube
Weight: 6.77 kg (size 53, Dura-Ace, Princeton Peak 4550 wheels, without pedals and bottle cages)

Drivetrain
• Crankset: Shimano Dura-Ace FC-R9200 HollowTech II 12s
• Front derailleur: Dura-Ace Di2 FD-9200
• Rear derailleur: Dura-Ace Di2 RD-R9200
• Cassette: CS-R9200 12s
• Chain: CN-HG 12s
• Bottom bracket: SM-BB9200

Or

• Crankset: Shimano Dura-Ace Powermeter FC-R9200-P HollowTech II 12s

Brakes
• Dura-Ace dual-piston calipers
• 160 mm front / 140 mm rear rotors

Cockpit
• MOST Talon Ultra Fast integrated handlebar
• MOST bar tape

Saddle and seatpost
• Most Lynx Ultrafast Superflow Carbon saddle 145 mm
• Pinarello Aero seatpost with 3D-printed titanium clamp

Wheels and tires
• Wheels: Princeton Peak 4550 DB (alternative configuration DT Swiss ARC 1400 50 mm)
• Tires: Continental Grand Prix 5000S TR 28
• Axles: MOST Ultra Light Custom 12x100 / 12x142, tool-free removal

Tip:To enjoy your new bike right away, consider adding the "bike assembled and adjusted by Cicli Drigani technicians" option to your cart for €59. With this service, your bike will be delivered assembled, adjusted, and ready to use. Without this option, the bike will arrive as packed by the manufacturer and will require some technical work before it can be used safely.
